Echo C35 Brushcutter

Model: C35

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?

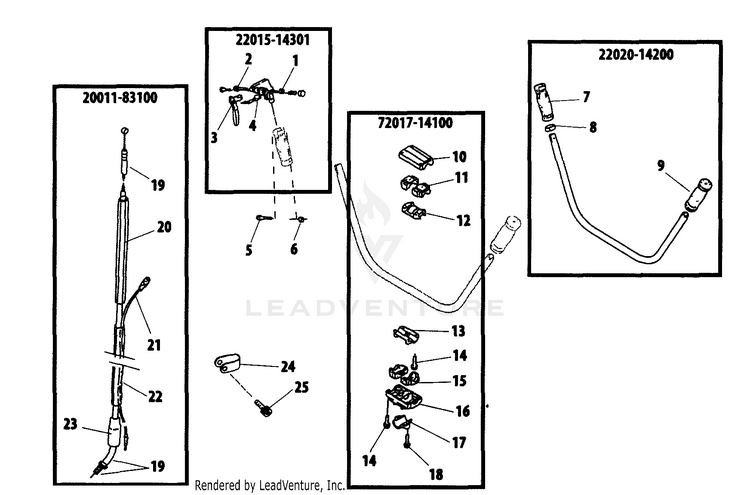

product name

Handle

...
...
22015-14301
THROTTLE CONTROL ASSY ECH-C044000830
...
1
NUT, LOCK M5 ECH-V263000240
...
2
BOLT ECH-V203000810
...
3
TRIGGER, THROTTLE ECH-C450000510
...
4
STOPPER, THROTTLE TRIGGER ECH-C617000410
...
5
BOLT M4x24 ECH-9110004024
...
6
NUT, NYLON M4 ECH-V262000080
...
22020-14200
HANDLEBAR ASSY ECH-P021035490
...
7
GRIP, RIGHT ECH-C403000400
...
8
HOLDER, THROTTLE CABLE ECH-C487000240
...
9
GRIP, LEFT ECH-C403000410
...
72017-14100
BRACKET KIT, HANDLE ECH-P021031461
...
10
CLAMP, UPPER ECH-C423000740
...
11
CUSHION, UPPER ECH-V420002470
...
12
CLAMP, UPPER ECH-C423000770
...
13
CLAMP, LOWER ECH-C423000760
...
14
BOLT M5x25 ECH-V203000630
...
15
CUSHION, LOWER ECH-V420002460
...
16
BRACKET, HANDLE 28 ECH-C423000700
...
17
CLAMP, LOWER 28 ECH-C423000720
...
18
SCREW M6x25 ECH-9114206025
...
20011-83100
THROTTLE CONTROL ASSY ECH-V043000490
...
19
CABLE, THROTTLE ECH-V430002870
...
20
TUBE, THROTTLE CABLE ECH-V475004750
...
21
LEAD - GROUND ECH-V485001620
...
22
TUBE, PROTECTIVE ECH-V475004740
...
23
CAP, CARBURETOR ECH-A246000020
...
24
CLAMP ECH-C487000300
...
25
BOLT M4x12 ECH-9111304012
...
...
...
...
...
