Echo C35 Brushcutter

Model: C35

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

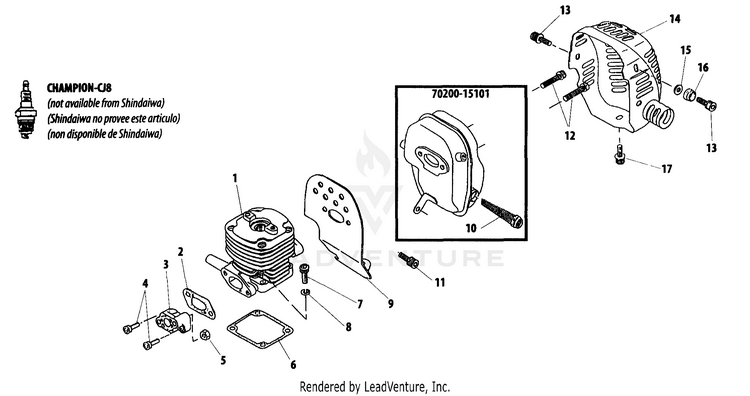

Cylinder

...
...
1
CYLINDER ECH-A130001371
...
2
GASKET, INTAKE ECH-V103000950
...
3
INSULATOR, INTAKE ECH-A200000660
...
4
BOLT M5x25 ECH-V203000630
...
5
NUT M5x6.3 ECH-V263000260
...
6
GASKET, CYLINDER ECH-V100000470
...
7
BOLT 5x25 ECH-90010505025
...
8
WASHER, SPRING 5 ECH-90060500005
...
9
HEAT SHIELD, EXHAUST ECH-V104001330
...
70200-15101
MUFFLER ECH-A300001100
...
10
SCREEN, SPARK ARRESTER ECH-A310000210
...
11
BOLT M5x12 ECH-V203000820
...
12
BOLT 6x25 ECH-90010506025
...
13
BOLT M5x10 ECH-V203000830
...
14
COVER, MUFFLER ECH-A320000740
...
15
WASHER ECH-V340000260
...
16
CUSHION ECH-A459000020
...
17
BOLT M5x10 ECH-V203000930
...
...
...
...
...
