product name

Echo C35 Brushcutter

Model: C35

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

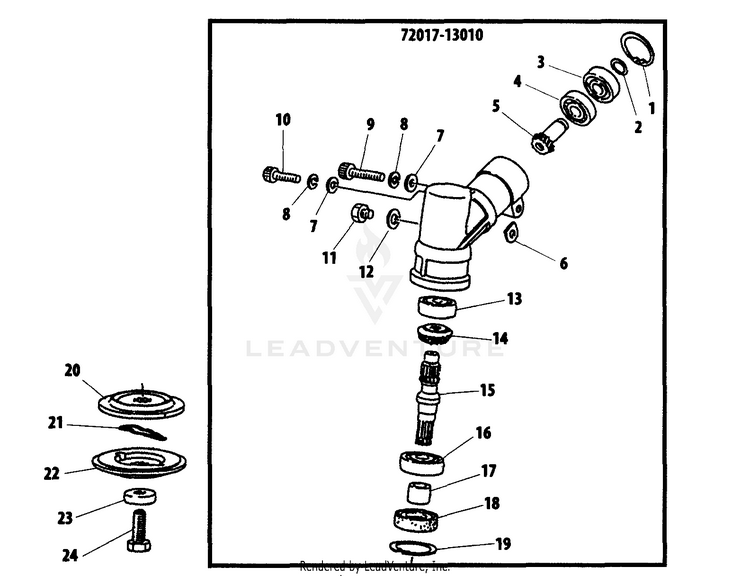

Gear Case

...
...
72017-13010
GEAR CASE ASSY ECH-P021048490
...
1
RING, SNAP 28 ECH-90070200028
...
2
RING, SNAP 12 ECH-90070600012
...
3
BEARING, BALL 6001ZZ ECH-90080406001
...
4
BEARING, BALL 6001 ECH-90080036001
...
5
GEAR, PINION ECH-V651000520
...
6
D-WASHER ECH-V340000280
...
7
WASHER 6.5x11.5x0.8 ECH-90060000006
...
8
WASHER, SPRING 6 ECH-90060500006
...
9
BOLT, HSH 6X28 ALLOY STEEL ECH-90010506028
...
10
BOLT ECH-90010506012
...
11
BOLT M6x10 ECH-V206000250
...
12
WASHER ECH-V307000230
...
13
BEARING, BALL 6000DDU ECH-90080206000
...
14
GEAR, BEVEL ECH-V651000540
...
15
GEAR SHAFT SET ECH-P021039360
...
16
BEARING, BALL 6202 ECH-90081006202
...
17
COLLAR ECH-V358000130
...
18
SEAL, OIL ECH-22015-13120
...
19
RING, SNAP 35 ECH-90070200035
...
20
PLATE, ADAPTOR - UPPER ECH-C535000770
...
21
PIN, SLIDE ECH-V641000240
...
22
PLATE, ADAPTOR - LOWER ECH-C535000781
...
23
GUARD, BOLT ECH-C535000790
...
24
BOLT 10x30 ECH-V206000220
...
...
...
...
...
