Echo C35 Brushcutter

Model: C35

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

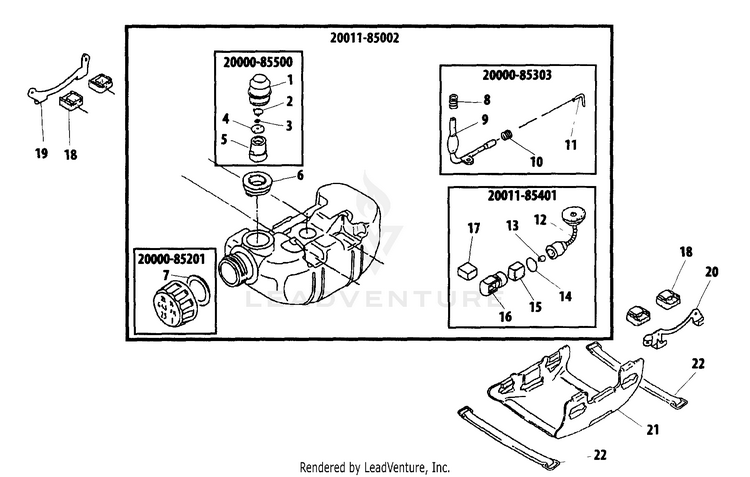

Fuel Tank

...
...
20011-85002
FUEL TANK ASSY ECH-P021017872
...
20000-85500
BREATHER ASSY ECH-A039000021
...
1
CAP, VENT ECH-A362000000
...
2
VENT ASSY ECH-A356000090
...
3
WASHER ECH-V303000170
...
4
RETAINER ECH-A359000010
...
5
HOLDER, VENT ECH-A358000030
...
6
GROMMET ECH-2000085579
...
20000-85201
CAP ASSY, FUEL ECH-A033000070
...
7
GASKET, FUEL CAP ECH-V107000010
...
20000-85303
PIPE ASSY, FUEL ECH-P021017770
...
8
CLAMP ECH-V451000850
...
9
PIPE ECH-V470002240
...
10
CLIP ECH-V490000610
...
11
CONNECTOR, PIPE ECH-V186000220
...
20011-85401
FILTER ASSY, FUEL ECH-A037000000
...
12
PIPE, FUEL ECH-V470001110
...
13
VALVE, CHECK ECH-A356000080
...
14
CLIP ECH-V490000590
...
15
FILTER, FUEL - B ECH-A368000030
...
16
WEIGHT ECH-A369000030
...
17
FILTER, FUEL - A ECH-A368000020
...
18
CUSHION, FUEL TANK ECH-V420002390
...
19
BRACKET M ECH-A393000190
...
20
BRACKET S ECH-A393000180
...
21
GUARD, FUEL TANK ECH-A175000200
...
22
STRAP, FUEL TANK ECH-A392000070
...
...
...
...
...
