Echo C35 Brushcutter

Model: C35

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

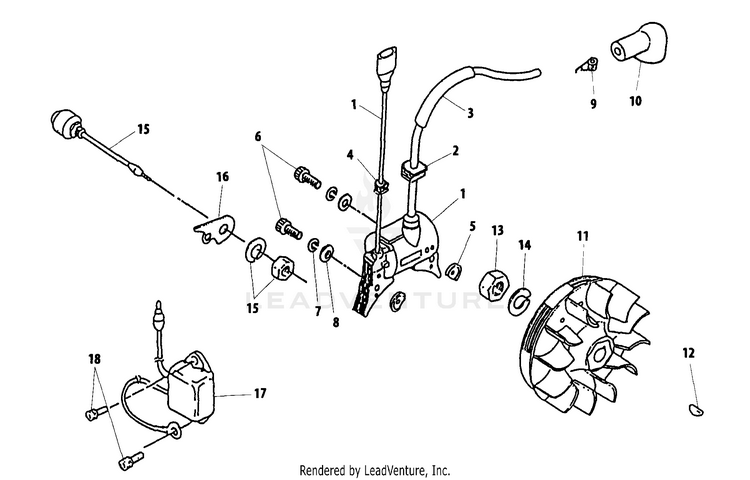

Flywheel

...
...
1
FLYWHEEL (MAGNETIC) & COIL KIT ECH-P021045020
...
2
GROMMET ECH-V135000080
...
3
TUBE, INSULATOR ECH-V475004880
...
4
GROMMET ECH-V135000080
...
5
COLLAR 4 ECH-V352000140
...
6
BOLT ECH-01020-04260
...
7
WASHER, SPRING 4 MM ECH-90060500004
...
8
WASHER 4.3x9.6x0.8 ECH-V302000010
...
9
TERMINAL, SPARK PLUG ECH-A426000050
...
10
CAP, SPARK PLUG ECH-A427000100
...
11
FLYWHEEL ECH-P021045130
...
12
KEY, WOODRUFF 3x10 ECH-9311503010
...
13
NUT 10x1.25 ECH-90050300010
...
14
WASHER, SPRING 10 ECH-90060500010
...
15
SWITCH, ON-OFF ECH-A045000330
...
16
BRACKET ECH-A439000500
...
17
ELECTRONIC UNIT ECH-A416000000
...
18
BOLT M4x12 ECH-9111304012
...
...
...
...
...
