Echo C35 Brushcutter

Model: C35

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

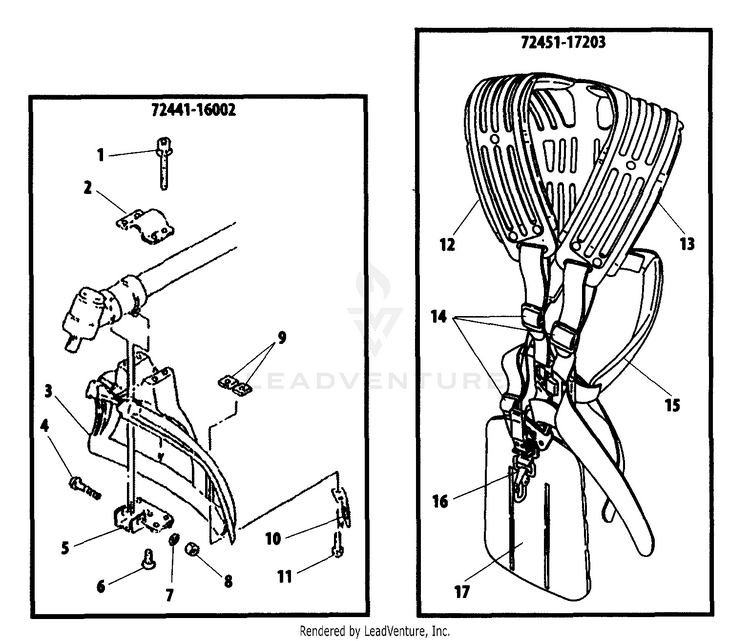

Debris Shield, Harness

...
...
72441-16002
GUARD ASSY ECH-P021032702
...
1
BOLT M5x45 ECH-V203000610
...
2
CLAMP, UPPER ECH-C551000060
...
3
SHIELD, DEBRIS ECH-C550000391
...
4
BOLT M6x40 ECH-V204000450
...
5
CLAMP, LOWER ECH-C551000110
...
6
SCREW HILO 4x10 ECH-V252000240
...
7
WASHER 6.5x13x1 ECH-90060300006
...
8
NUT, HEX M6 ECH-90050000006
...
9
NUT M5 ECH-V263000130
...
10
CUTTER ECH-C554000040
...
11
BOLT 5x16 ECH-9112205016
...
72451-17203
HARNESS ASSY ECH-64007-67011
...
12
PAD, RIGHT ECH-64007-67330
...
13
PAD, LEFT ECH-64007-67340
...
14
BUCKLE ECH-C645000000
...
15
PAD, SHOULDER ECH-C652000040
...
16
HOOK ECH-72451-17380
...
17
PAD ECH-72451-17370
...
...
...
...
...
