Echo C35 Brushcutter

Model: C35

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

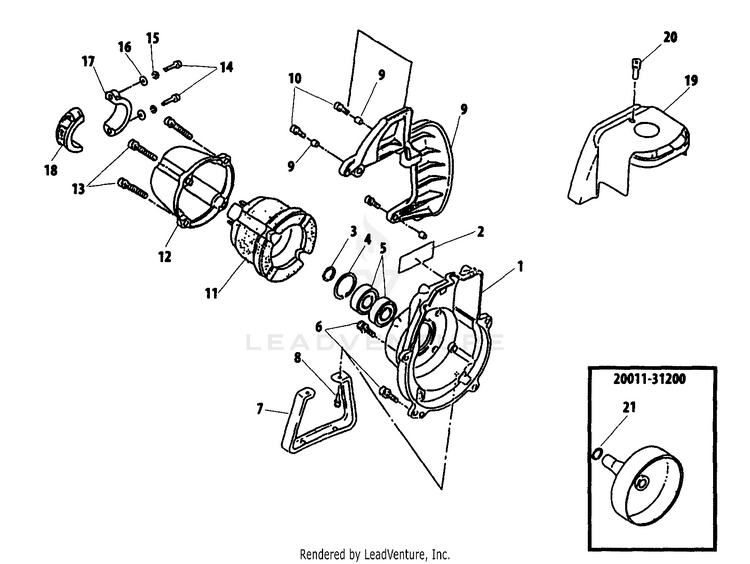

Fan Cover

...
...
1
COVER, FAN ECH-A172002310
...
2
LABEL, TRADE ECH-X562001410
...
3
RING, SNAP ECH-V583000181
...
4
RING, SNAP 32 ECH-90070200032
...
5
BEARING, BALL 6002 DDU ECH-90080206002
...
6
BOLT 5x20 ECH-V203000351
...
7
STAND ECH-A175000180
...
8
BOLT 5x16 ECH-V203000591
...
9
GUARD, TOP ECH-A162000180
...
10
BOLT M4x16 ECH-9111304016
...
11
CUSHION, AV ECH-A575000400
...
12
CAP, CUSHION ECH-A575000410
...
13
BOLT 5x20 ECH-V203000351
...
14
BOLT 5x25 ECH-90010505025
...
15
WASHER, SPRING 5 ECH-90060500005
...
16
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
17
CLAMP - B ECH-A575000430
...
18
CLAMP - A ECH-A575000420
...
19
COVER, ENGINE ECH-A160001720
...
20
BOLT 5x14 ECH-V203001140
...
20011-31200
DRUM, CLUTCH - C35,C350,T350 ECH-A556001640
...
21
RING, RETAINING ECH-V582000080
...
...
...
...
...
