Echo C35 Brushcutter

Model: C35

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

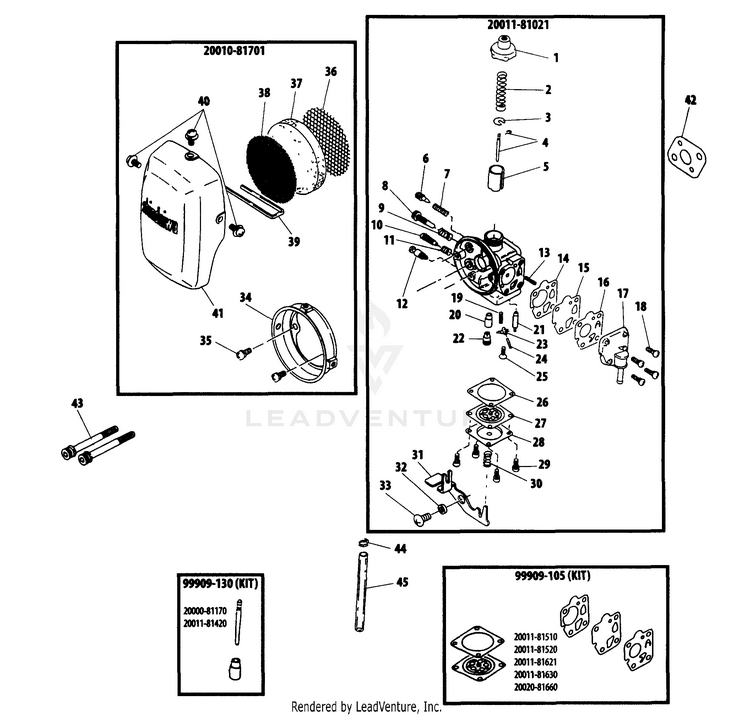

Carburetor

...
...
20011-81021
CARBURETOR ECH-A021003490
...
1
CAP, THROTTLE ECH-P004003400
...
2
SPRING ECH-P004000440
...
3
WASHER, SPRING SUPPORT ECH-12411505530
...
4
NEEDLE, JET ECH-P004003390
...
5
VALVE, THROTTLE ECH-P004001260
...
6
SCREW, SLOW AIR ECH-P004000880
...
7
SPRING ECH-P004000890
...
8
SCREW, IDLE ADJUST ECH-12415905530
...
9
SPRING ECH-12433305630
...
10
SCREW, MAIN ADJUST ECH-P004001300
...
11
SPRING ECH-12435521330
...
12
VALVE, OVERFLOW ECH-P004001360
...
13
SPRING, COIL ECH-12436721330
...
14
GASKET, DIAPHRAGM ECH-12436321330
...
15
DIAPHRAGM, METERING ECH-P004001430
...
16
VALVE, PUMP ECH-P004001880
...
17
BODY, PUMP ECH-P004001440
...
18
SCREW ECH-P004001030
...
19
SPRING ECH-12433121330
...
20
HOLDER, MAIN JET ECH-P004001320
...
21
VALVE, INLET NEEDLE ECH-P004000930
...
22
JET, MAIN ECH-P004001310
...
23
LEVER, METERING ECH-P004001340
...
24
PIN, METERING LEVER ECH-12433221330
...
25
SCREW M3x8 ECH-P004001350
...
26
GASKET KIT ECH-P050009220
...
27
DIAPHRAGM, METERING ECH-12434122830
...
28
COVER, DIAPHRAGM ECH-12432421330
...
29
SCREW M3x8 ECH-P004001000
...
30
SPRING ECH-P004001400
...
31
LEVER, TICKLER ECH-P004001370
...
32
COLLAR ECH-P004001420
...
33
SCREW ECH-P004001410
...
20010-81701
FILTER ASSY, AIR ECH-A027000090
...
34
CASE, AIR FILTER ECH-A225000500
...
35
SCREW ECH-V252000220
...
36
SCREEN, REAR ECH-A230000040
...
37
FILTER, AIR ECH-A226000670
...
38
SCREEN - FRONT ECH-A230000030
...
39
CLIP, FILTER RETAINING ECH-A238000060
...
40
SCREW 4 ECH-V252000230
...
41
COVER, AIR FILTER ECH-A232000870
...
42
GASKET, CARBURETOR ECH-V103000960
...
43
BOLT M5x50 ECH-V203000850
...
44
CLIP ECH-V490000580
...
45
PIPE ECH-V471002640
...
99909-130
NEEDLE KIT, JET ECH-P050009270
...
99909-105
DIAPHRAGM/GASKET KIT ECH-90909-105
...
...
...
...
...
