Echo C282 Brushcutter

Model: C282

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

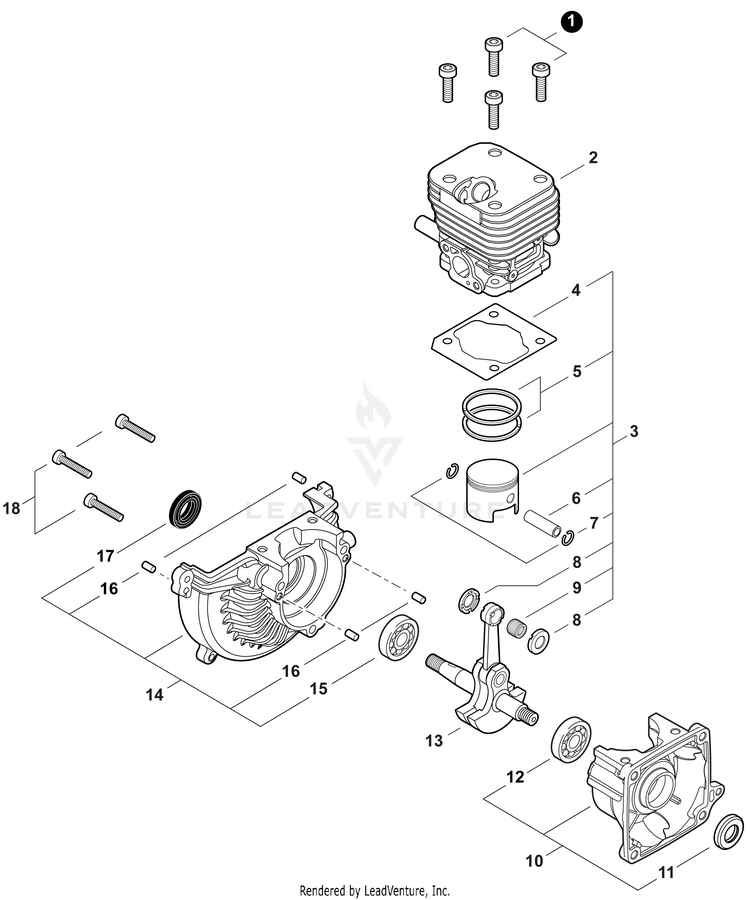

ENGINE

...
...
1
BOLT 5x16 ECH-90010505016
...
2
CYLINDER ASSY ECH-A130001280
...
3
PISTON KIT Includes Items 4-9 ECH-P021045970
...
4
GASKET, CYLINDER ECH-V100000440
...
5
RING, PISTON ECH-A101000340
...
6
PIN, PISTON ECH-V607000020
...
7
RING, SNAP ECH-V580000090
...
8
WASHER, THRUST 9 ECH-V392000020
...
9
BEARING, NEEDLE 9 ECH-V554000010
...
10
CRANKCASE - REAR C/T282 Includes Items 11-12 ECH-P021028131
...
11
SEAL, OIL ECH-V505000090
...
12
BEARING, BALL 6201 ECH-9403536201
...
13
CRANKSHAFT ECH-A011000800
...
14
CRANKCASE ASSY M Includes Items 15-17 ECH-P021028141
...
15
BEARING, BALL 6201 ECH-9403536201
...
16
PIN, LOCATING 4x8 ECH-90033040080
...
17
SEAL, OIL ECH-V505000090
...
18
BOLT 5x25 ECH-90010505025
...
...
...
...
...
