Echo C282 Brushcutter

Model: C282

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

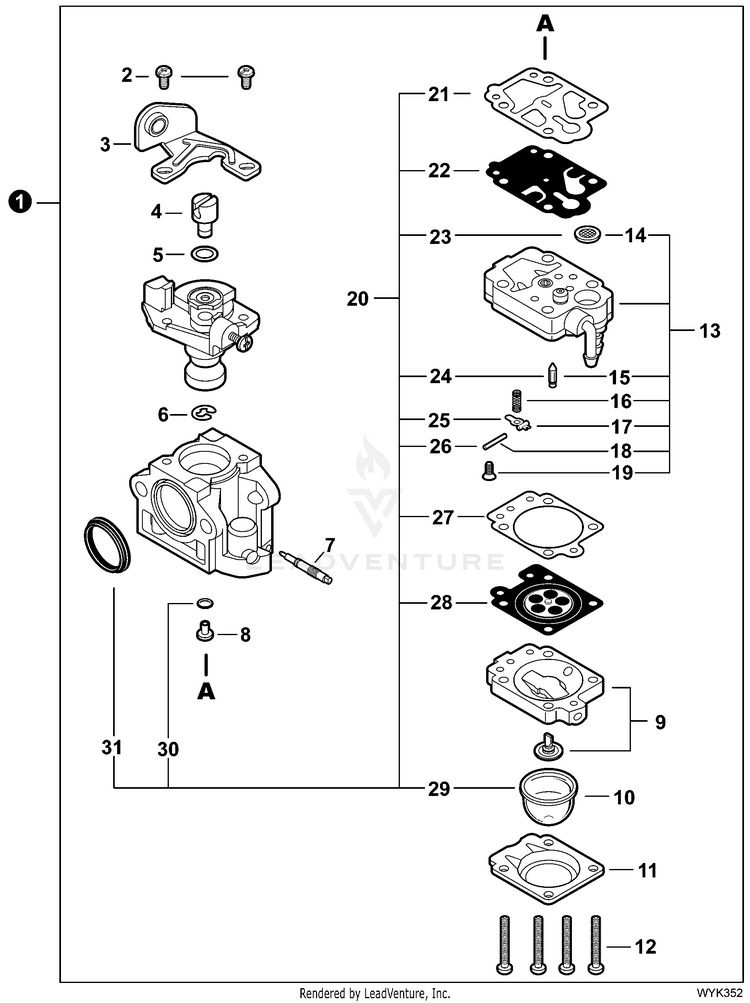

CARBURETOR

...
...
1
CARBURETOR - WYK-352 Includes ITEMS 2-31 ECH-A021003262
...
2
SCREW ECH-12311440630
...
3
BRACKET, THROTTLE CABLE ECH-12312854230
...
4
SWIVEL ECH-12317245130
...
5
WASHER ECH-12314954230
...
6
E-RING ECH-12317307930
...
7
NEEDLE, HIGH SPEED ECH-P003004110
...
8
JET, MAIN ECH-12318445030
...
9
BODY ASSY, PURGE ECH-P003003980
...
10
BULB, PURGE ECH-12318140630
...
11
RETAINER, PURGE BULB ECH-12314205560
...
12
SCREW ECH-12311005560
...
13
BODY ASSY, PUMP Includes ITEMS 14-19 ECH-P003004890
...
14
SCREEN, FUEL INLET ECH---
...
15
VALVE, INLET NEEDLE ECH---
...
16
SPRING, METERING LEVER ECH---
...
17
LEVER, METERING ECH---
...
18
PIN, METERING LEVER ECH---
...
19
SCREW ECH---
...
20
REPAIR KIT, CARBURETOR Includes ITEMS 21-31 ECH-P003000060
...
21
GASKET, PUMP ECH---
...
22
DIAPHRAGM, PUMP ECH---
...
23
SCREEN, FUEL INLET ECH---
...
24
VALVE, INLET NEEDLE ECH---
...
25
LEVER, METERING ECH---
...
26
PIN, METERING LEVER ECH---
...
27
GASKET, METERING DIAPHRAGM ECH---
...
28
DIAPHRAGM, METERING ECH---
...
29
BULB, PURGE ECH---
...
30
O-RING ECH---
...
31
RING, PACKING ECH---
...
...
...
...
...
