Echo C282 Brushcutter

Model: C282

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

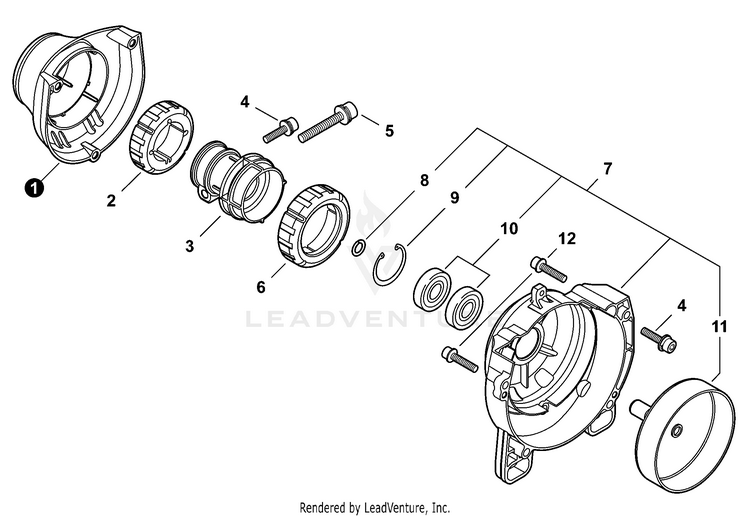

FAN COVER

...
...
1
COVER, CUSHION ECH-A575000491
...
2
HOLDER, FRONT CUSHION ECH-V423000040
...
3
CUSHION ECH-A575000270
...
4
BOLT 5x16 ECH-V203000591
...
5
BOLT M6x28 ECH-V204000411
...
6
HOLDER, REAR CUSHION ECH-V423000050
...
7
COVER ASSY, FAN Includes items 8-11 ECH-P021041991
...
8
RING, SNAP 12 ECH-90070100012
...
9
RING, SNAP 28 ECH-90070200028
...
10
BEARING, BALL 6001 DDU C3 ECH-9400236001
...
11
DRUM, CLUTCH ECH-A556001670
...
12
BOLT 5x20 ECH-V203000351
...
...
...
...
...
