Echo C282 Brushcutter

Model: C282

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

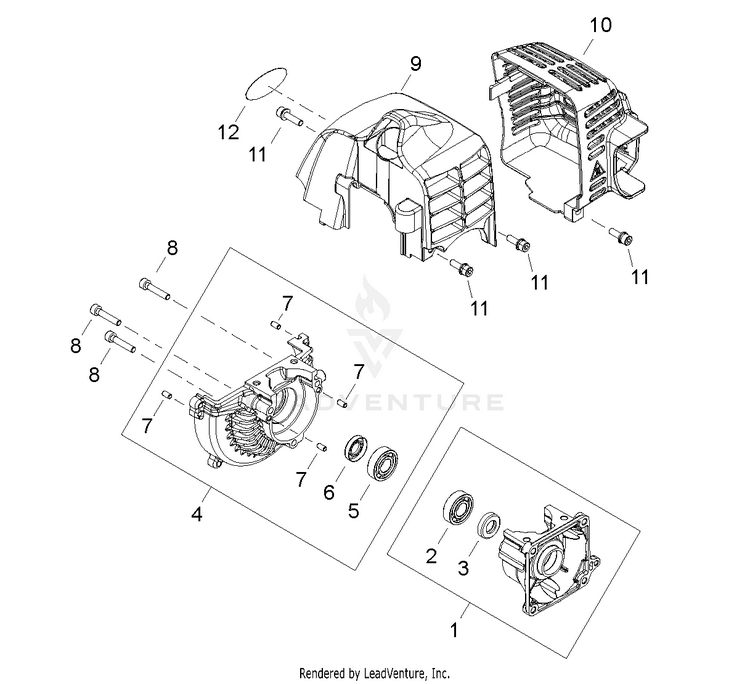

Crankcase / Engine Cover / Muffler Cover

...
...
1
CRANKCASE - REAR C/T282 ECH-P021028131
...
2
BEARING, BALL 6201 ECH-9403536201
...
3
SEAL, OIL ECH-V505000090
...
4
CRANKCASE ASSY M ECH-P021028141
...
5
BEARING, BALL 6201 ECH-9403536201
...
6
SEAL, OIL ECH-V505000090
...
7
PIN, LOCATING 4x8 ECH-90033040080
...
8
BOLT 5x25 ECH-90010505025
...
9
COVER, ENGINE ECH-A160001550
...
10
COVER, MUFFLER ECH-A320000691
...
11
BOLT, ADHESIVE M5x20 ECH-V203000760
...
12
LABEL - MODEL 282 ECH-X504002100
...
...
...
...
...
