Echo C282 Brushcutter

Model: C282

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

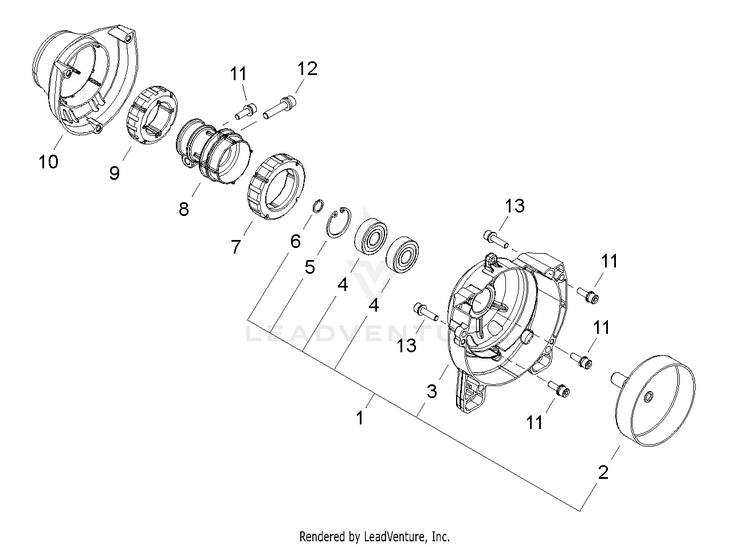

Fan Cover

...
...
1
COVER ASSY, FAN ECH-P021041991
...
2
DRUM, CLUTCH ECH-A556001670
...
3
COVER, FAN ECH-A172002060
...
4
BEARING, BALL 6001 DDU C3 ECH-9400236001
...
5
RING, SNAP 28 ECH-90070200028
...
6
RING, SNAP 12 ECH-90070600012
...
7
HOLDER, REAR CUSHION ECH-V423000050
...
8
CUSHION ECH-A575000270
...
9
HOLDER, FRONT CUSHION ECH-V423000040
...
10
COVER, CUSHION ECH-A575000491
...
11
BOLT 5x16 ECH-V203000591
...
12
BOLT M6x28 ECH-V204000411
...
13
BOLT 5x20 ECH-V203000351
...
...
...
...
...
