Echo C282 Brushcutter

Model: C282

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

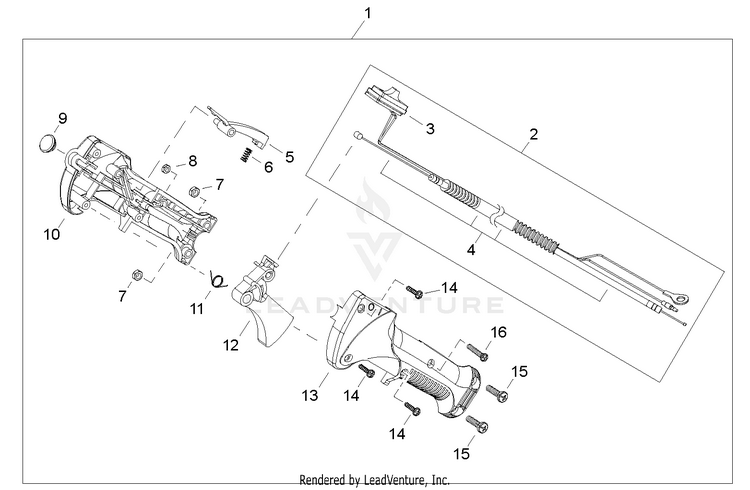

Throttle Control Assy

...
...
1
CONTROL ASSY, THROTTLE ECH-C044000732
...
2
CABLE ASSY, CONTROL ECH-V043000400
...
3
CABLE ASSY, CONTROL ECH-V043000400
...
4
CABLE ASSY, CONTROL ECH-V043000400
...
5
LOCKOUT, THROTTLE ECH-C460000241
...
6
SPRING, COMPRESSION ECH-V450001020
...
7
NUT M5 ECH-9201705000
...
8
NUT M4 ECH-V262000100
...
9
PLUG, RUBBER ECH-V162000410
...
10
CONTROL HANDLE - RIGHT ECH-C412000430
...
11
SPRING, TORSION ECH-V452000690
...
12
TRIGGER, THROTTLE ECH-C450000581
...
13
CONTROL HANDLE KIT ECH-P021044940
...
14
SCREW, TAPPING 4x16 ECH-V252000360
...
15
SCREW M5x20 ECH-V253000580
...
16
SCREW M4x23 ECH-V252000370
...
...
...
...
...
