Echo C282 Brushcutter

Model: C282

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?

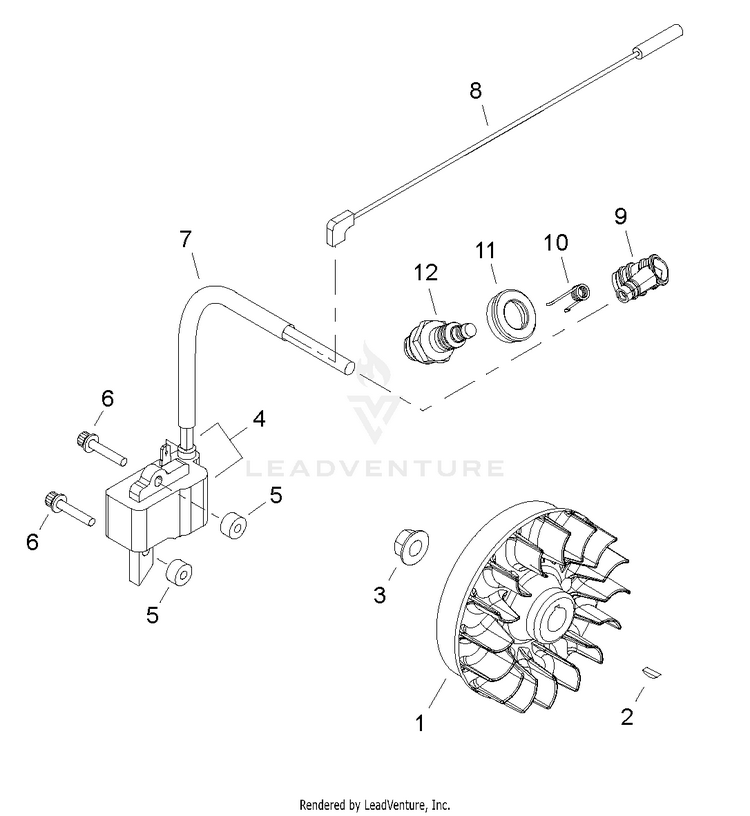

product name

Flywheel, Ignition

...
...
1
FLYWHEEL ECH-A409000610
...
2
KEY, WOODRUFF 3x10 ECH-9311503010
...
3
NUT M8 ECH-V265000140
...
4
COIL, IGNITION ECH-A411000741
...
5
INSULATOR 4.2x11x6 ECH-V322000040
...
6
BOLT, ADHESIVE M4x20 ECH-V202000210
...
7
TUBE, IGNITION COIL 8xL125 ECH-V475006600
...
8
LEAD - IGNITION L= 215 ECH-V485001370
...
9
CAP, SPARK PLUG ECH-A427000060
...
10
SEAL, SPARK PLUG ECH-A429000090
...
11
TERMINAL, SPARK PLUG ECH-A426000050
...
12
SPARK PLUG - BPMR6A ECH-1300013506
...
...
...
...
...
