Echo C282 Brushcutter

Model: C282

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

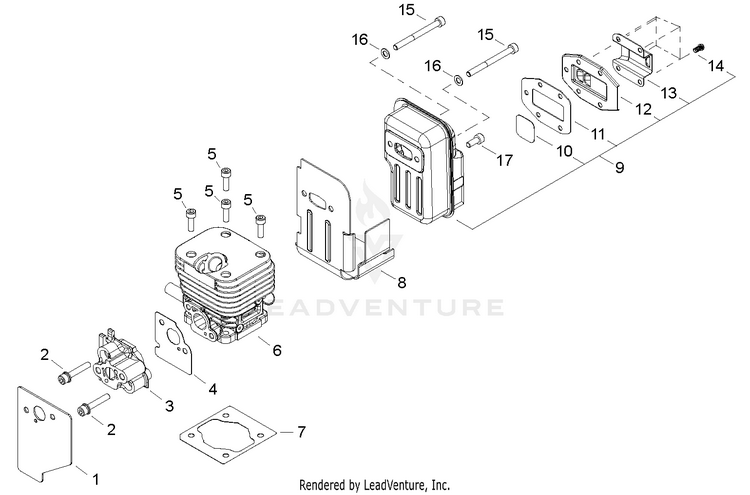

Cylinder, Exhaust, Intake

...
...
1
GASKET, CARBURETOR ECH-V103000920
...
2
BOLT M5x30 ECH-V203000581
...
3
INSULATOR ECH-A200000620
...
4
HEAT SHIELD, INTAKE ECH-V103000660
...
5
BOLT 5x16 ECH-90010505016
...
6
CYLINDER ASSY ECH-A130001280
...
7
GASKET, CYLINDER ECH-V100000440
...
8
HEAT SHIELD, EXHAUST ECH-V104001280
...
9
MUFFLER ASSY ECH-A030000211
...
10
SCREEN, SPARK ARRESTER ECH-A310000170
...
11
GASKET, EXHAUST ECH-V104001270
...
12
GUIDE, EXHAUST ECH-A313001281
...
13
OUTLET, EXHAUST ECH-A313001230
...
14
SCREW M4x8 ECH-90028304008
...
15
BOLT M5x55 ECH-9110905055
...
16
WASHER SS 5 MM ECH-90060400005
...
17
BOLT 5x12 ECH-90010505012
...
...
...
...
...
