Echo C282 Brushcutter

Model: C282

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

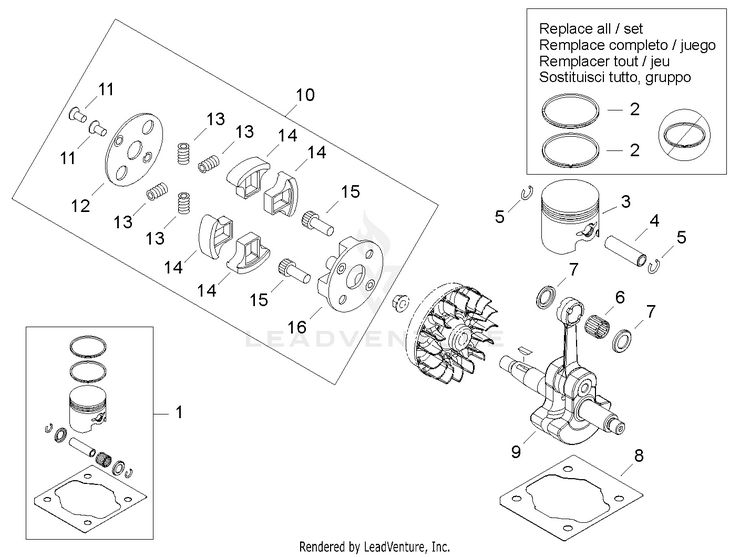

Clutch, Piston

...
...
1
PISTON KIT ECH-P021045970
...
2
RING, PISTON ECH-A101000340
...
3
PISTON ECH-A100000641
...
4
PIN, PISTON ECH-V607000020
...
5
RING, SNAP ECH-V580000090
...
6
BEARING, NEEDLE 9 ECH-V554000010
...
7
WASHER, THRUST 9 ECH-V392000020
...
8
GASKET, CYLINDER ECH-V100000440
...
9
CRANKSHAFT ECH-A011000800
...
10
CLUTCH ASSY ECH-A056000452
...
11
BOLT 5 ECH-V203000880
...
12
PLATE, CLUTCH ECH-A551000120
...
13
SPRING, CLUTCH ECH-A566000220
...
14
SHOE, CLUTCH ECH-A555000130
...
15
BOLT, CLUTCH ECH-A557000120
...
16
BOSS, CLUTCH ECH-A552000120
...
...
...
...
...
