Echo C282 Brushcutter

Model: C282

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

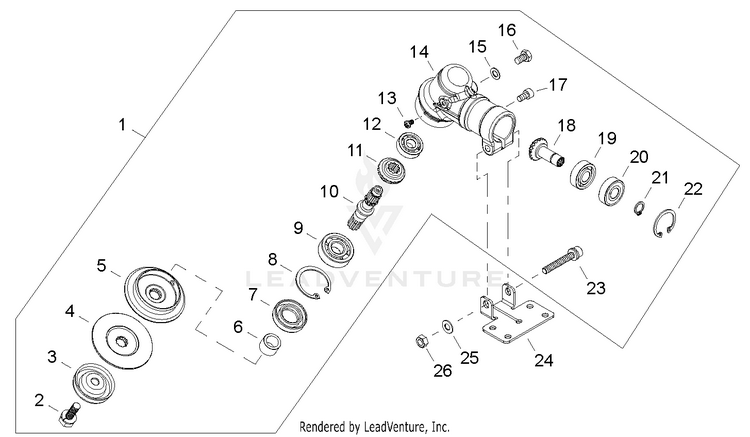

Gearcase

...
...
1
GEAR CASE ASSY ECH-P021027350
...
2
BOLT 8 ECH-V205000940
...
3
GUARD, BOLT ECH-C535000730
...
4
PLATE, ADAPTOR - LOWER ECH-C535000720
...
5
PLATE, ADAPTOR - UPPER ECH-C535000710
...
6
SPACER ECH-V356000500
...
7
SEAL, OIL ECH-V510000000
...
8
RING, SNAP 32 ECH-90070200032
...
9
BEARING, BALL 6201 ECH-90081006201
...
10
SHAFT, GEAR ECH-C534000580
...
11
GEAR SET ECH-P100000010
...
12
BEARING, BALL 609 ECH-90080000609
...
13
SCREW M4x6 ECH-9157804006
...
14
CASE, GEAR ECH-C531000590
...
15
WASHER 6.5x11.5x0.8 ECH-90060000006
...
16
BOLT M6x10 ECH-9103006010
...
17
BOLT M5x10 ECH-90010505010
...
18
GEAR SET ECH-P100000010
...
19
BEARING, BALL 6000 ECH-90080006000
...
20
BEARING, BALL 6000ZZ ECH-9404406000
...
21
RING, SNAP 10 ECH-9242310000
...
22
RING, SNAP 26 ECH-9242426000
...
23
BOLT M6x40 ECH-V204000450
...
24
PLATE, SHIELD MOUNTING ECH-C551000050
...
25
WASHER 6.5x13x1 ECH-90060300006
...
26
NUT, HEX M6 ECH-90050000006
...
...
...
...
...
