Echo C282 Brushcutter

Model: C282

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

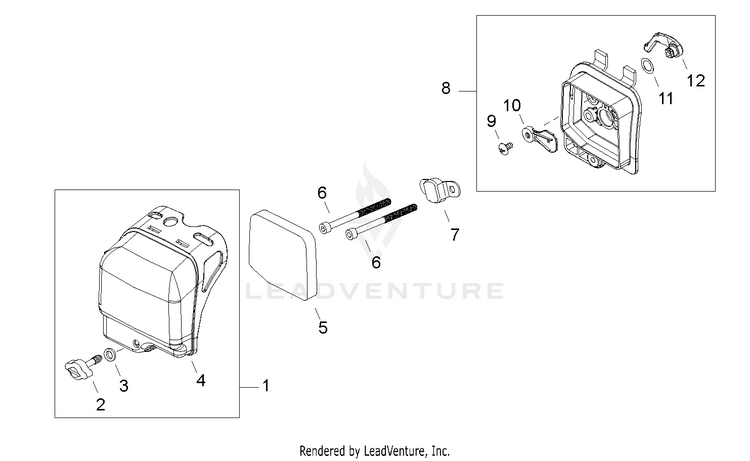

Air Filter

...
...
1
COVER ASSY, AIR FILTER ECH-A232000640
...
2
THUMBSCREW ECH-V299000340
...
3
WASHER 5 ECH-V323000080
...
4
COVER, AIR FILTER ECH-A232000630
...
5
FILTER, AIR ECH-A226000570
...
6
BOLT M5x60 ECH-9110905060
...
7
BRACKET ECH-A244000120
...
8
CASE ASSY, AIR FILTER ECH-A023000020
...
9
SCREW, TRUSS M4x12 ECH-9143904012
...
10
PLATE, CHOKE ECH-A243000170
...
11
WASHER, WAVE ECH-V346000050
...
12
LEVER, CHOKE ECH-A242000140
...
...
...
...
...
