Echo C282 Brushcutter

Model: C282

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

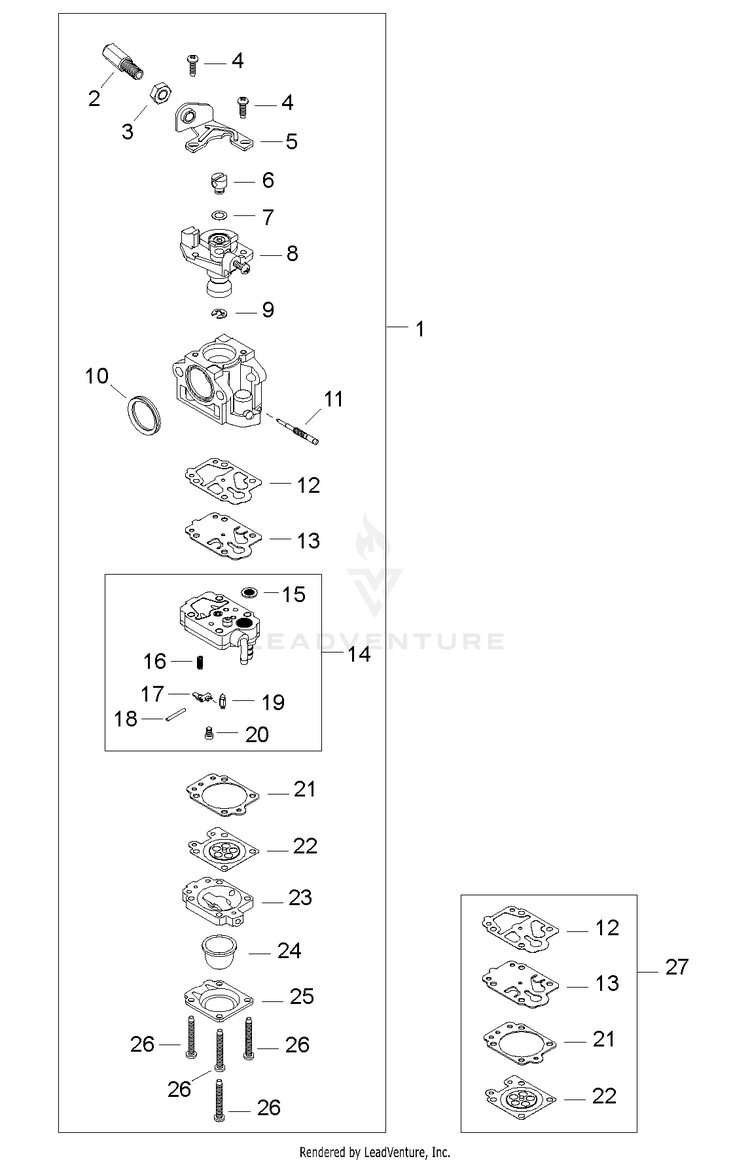

Carburetor

...
...
1
CARBURETOR - WYK-297 ECH-A021002350
...
2
ADJUSTER, THROTTLE CABLE ECH-C486000030
...
3
NUT, ADJUSTER LOCK M7 ECH-12315356430
...
4
SCREW ECH-12311440630
...
5
BRACKET, THROTTLE CABLE ECH-12312854230
...
6
SWIVEL ECH-12317245130
...
7
WASHER ECH-12314954230
...
8
VALVE, THROTTLE ECH-P003004130
...
9
E-RING ECH-12317307930
...
10
RING, PACKING ECH-12314312110
...
11
NEEDLE, HIGH SPEED ECH-6210081320
...
12
GASKET, FUEL PUMP ECH-12312540630
...
13
DIAPHRAGM, FUEL PUMP ECH-12311240630
...
14
BODY ASSY, PUMP ECH-P003000440
...
15
SCREEN, FUEL INLET ECH-12312610631
...
16
SPRING, METERING LEVER ECH-P003000450
...
17
LEVER, METERING ECH-12312338330
...
18
PIN, METERING LEVER ECH-12313803930
...
19
VALVE, INLET NEEDLE ECH-12313719830
...
20
SCREW ECH-12313905560
...
21
GASKET, METERING DIAPHRAGM ECH-12314005560
...
22
DIAPHRAGM, METERING ECH-P003001850
...
23
BODY ASSY, PURGE ECH-12318005560
...
24
BULB, PURGE ECH-12318140630
...
25
RETAINER, PURGE BULB ECH-12314205560
...
26
SCREW ECH-12311005560
...
27
DIAPHRAGM/GASKET KIT ECH-V109000190
...
...
...
...
...
