Echo C242 Brushcutter

Model: C242

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

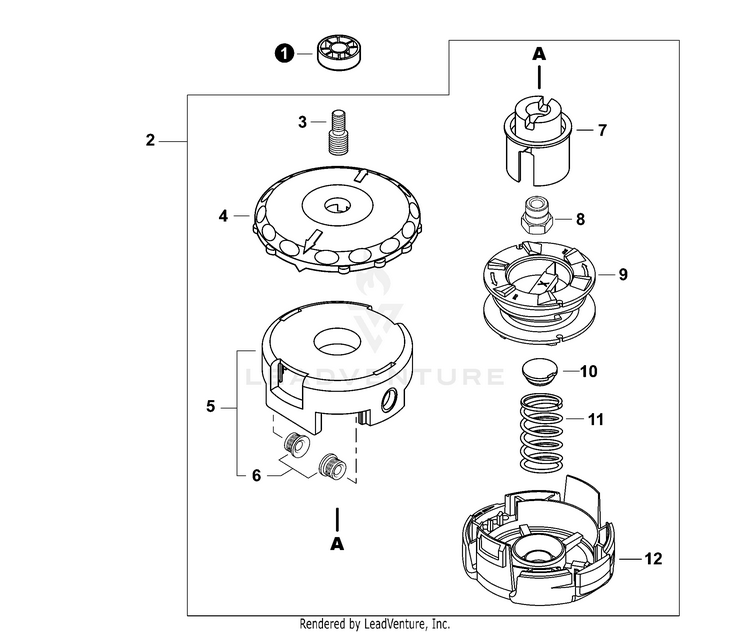

TRIMMER HEAD

...
...
1
SPACER, BLACK ECH-V376001850
...
2
TRIMMER HEAD, SPEED-FEED® 400 Includes Items 3-12 ECH-78890-30000
...
3
BOLT, STUD M7x1.00 /M10x1.25 LH GOLD ECH-V216000110
...
4
KNOB, SF400 - NA ECH-E415000280
...
5
HOUSING, SPOOL Includes Item 6 ECH-X470000470
...
6
EYELET, TRIMMER HEAD ECH-X475000170
...
7
HUB (LH) BLACK ECH-X476000100
...
8
BUSHING M10X1.25 LH GOLD ECH-V160000360
...
9
SPOOL ECH-X473000190
...
10
CAP, SPRING ECH-V494001380
...
11
SPRING, GOLD, SF ECH-V450002590
...
12
DRUM, LID ECH-X472000110
...
...
...
...
...
