Echo C242 Brushcutter

Model: C242

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

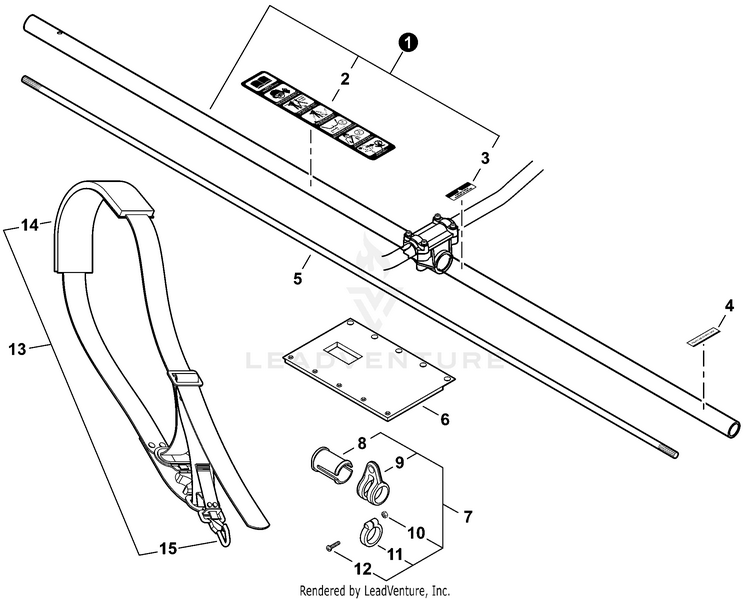

MAIN PIPE

...
...
1
MAIN PIPE ASSY Includes Items 2-3 ECH-P200000000
...
2
LABEL - CAUTION (BLADE CAPABLE) ECH-X505005890
...
3
LABEL - ALIGNMENT ECH-89015204930
...
4
LABEL - ALIGNMENT ECH-89015204930
...
5
MAINSHAFT ECH-C504000500
...
6
CUSHION, MAIN PIPE ECH-V420002340
...
7
HANGER ASSY Includes Items 8-12 ECH-C063000000
...
8
COLLAR 24 ECH-V363000110
...
9
HANGER ECH-C670000060
...
10
NUT ECH-900500-00004
...
11
CLAMP ECH-V495001330
...
12
SCREW M4x16 ECH-9157804016
...
13
HARNESS ASSY, SHOULDER Includes Items 14-15 ECH-C062000390
...
14
PAD, SHOULDER ECH-C644000080
...
15
HOOK, SNAP ECH-C649000200
...
...
...
...
...
