Echo C242 Brushcutter

Model: C242

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

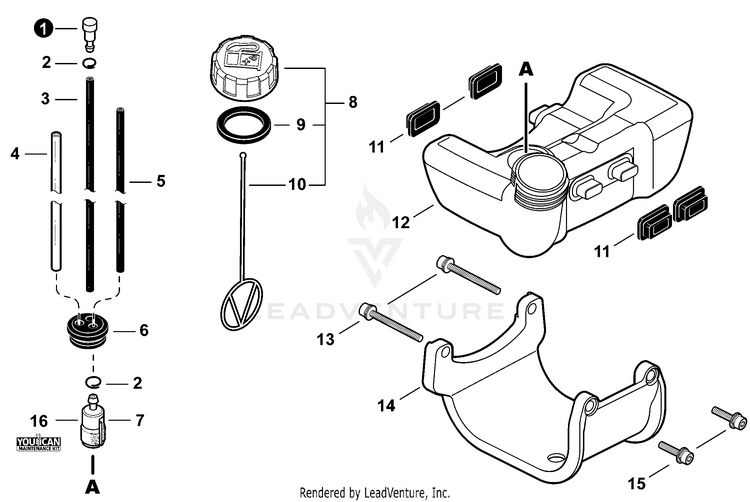

FUEL SYSTEM S/N: T16611001001 - T16611001072

...
...
1
VENT ASSY ECH-A356000040
...
2
CLIP 6.5 MM ECH-V490001230
...
3
PIPE 3*6*105 ECH-13011054431
...
4
PIPE, FUEL 3x6x85 YELLOW ECH-V471006070
...
5
PIPE 3x6x210 BLACK ECH-43721030831
...
6
GROMMET, FUEL ECH-13211555931
...
7
FILTER, FUEL Included in Tune-Up Kit ECH-A369000440
...
8
CAP ASSY, FUEL Includes Items 9-10 ECH-P021035680
...
9
GASKET, FUEL CAP ECH-V107000230
...
10
CONNECTOR, CAP L= 123 ECH-A365000060
...
11
CUSHION, FUEL TANK ECH-V420002220
...
12
TANK, FUEL ECH-A350000972
...
13
BOLT 5x40 ECH-90016205040
...
14
GUARD, FUEL TANK ECH-A175000080
...
15
BOLT 5x18 ECH-90016205018
...
16
TUNE-UP KIT - YOUCAN™ See Maintenance Kits ECH-84016Y
...
...
...
...
...
