Echo C242 Brushcutter

Model: C242

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

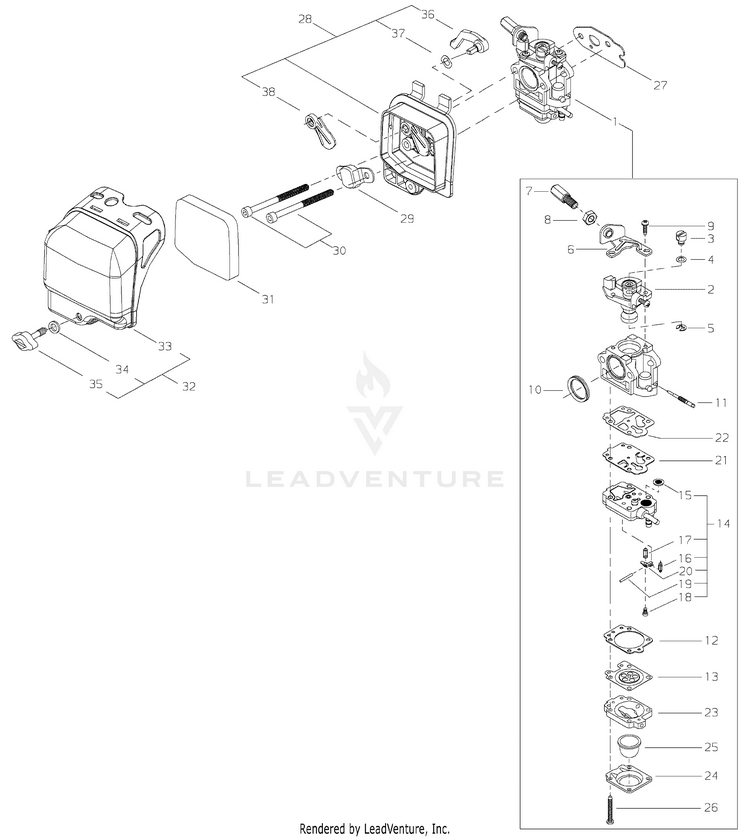

Air Filter, Carburetor

...
...
1
CARBURETOR ECH-A021002070
...
2
VALVE ASSY, THROTTLE ECH-62100-81310
...
3
SWIVEL ECH-12317245130
...
4
WASHER ECH-12314954230
...
5
E-RING ECH-12317307930
...
6
BRACKET, THROTTLE CABLE ECH-12312854230
...
7
ADJUSTER, THROTTLE CABLE ECH-C486000030
...
8
NUT, ADJUSTER LOCK M7 ECH-12315356430
...
9
SCREW ECH-12311440630
...
10
RING, PACKING ECH-12314312110
...
11
NEEDLE, HIGH SPEED ECH-6210081320
...
12
GASKET, METERING DIAPHRAGM ECH-12314005560
...
13
DIAPHRAGM, METERING ECH-P003000090
...
14
BODY ASSY, PUMP ECH-P003000510
...
15
SCREEN, FUEL INLET ECH-12312610631
...
16
VALVE, INLET NEEDLE ECH-12313719830
...
17
SPRING, METERING LEVER ECH-12312205560
...
18
SCREW ECH-12313905560
...
19
PIN, METERING LEVER ECH-12313803930
...
20
LEVER, METERING ECH-12312338330
...
21
DIAPHRAGM, FUEL PUMP ECH-12311240630
...
22
GASKET, FUEL PUMP ECH-12312540630
...
23
BODY ASSY, PURGE ECH-12318005560
...
24
RETAINER, PURGE BULB ECH-12314205560
...
25
BULB, PURGE ECH-12318140630
...
26
SCREW ECH-12311005560
...
27
GASKET, CARBURETOR ECH-V103000670
...
28
CASE ASSY, AIR FILTER ECH-A023000020
...
36
LEVER, CHOKE ECH-A242000130
...
37
WASHER, WAVE ECH-V346000050
...
38
PLATE, CHOKE ECH-A243000160
...
29
BRACKET ECH-A244000120
...
30
BOLT M5x60 ECH-9110905060
...
31
FILTER, AIR ECH-A226000570
...
32
COVER ASSY, AIR FILTER ECH-A232000640
...
33
COVER, AIR FILTER ECH-A232000630
...
34
WASHER 5 ECH-V323000080
...
35
THUMBSCREW ECH-V299000340
...
...
...
...
...
