Echo C242 Brushcutter

Model: C242

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

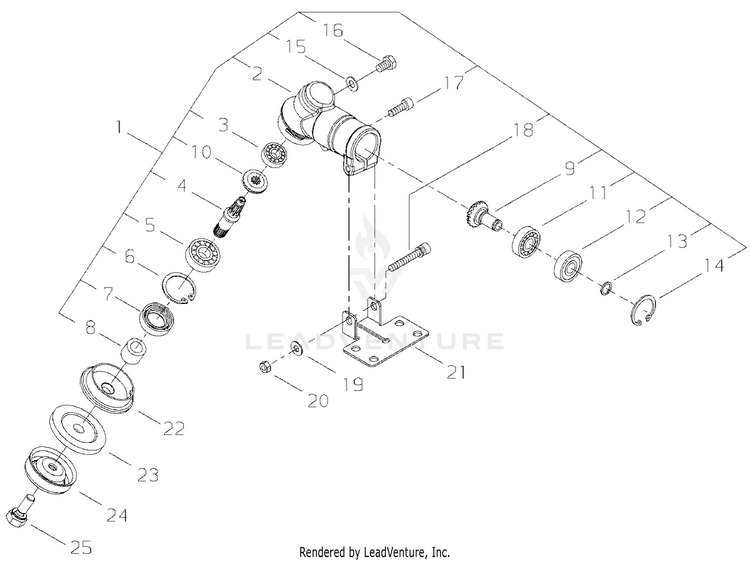

Gearcase Assembly

...
...
1
GEAR CASE ASSY ECH-P021034640
...
2
GEARCASE ECH-37083-63111
...
3
BEARING, BALL 626 MOS ECH-12900-06260
...
4
GEAR SHAFT ECH-C534000530
...
5
BEARING, BALL 6000 MOS ECH-12900-60002
...
6
RING, SNAP 26 ECH-9242426000
...
7
SEAL, OIL ECH-V509000000
...
8
SPACER ECH-V356000480
...
9
BEVEL PINION ECH-V651000380
...
10
BEVEL GEAR ECH-V651000390
...
11
BEARING, BALL 609 MOS ECH-12900-06090
...
12
BEARING, BALL 609Z MOS ECH-12900-06091
...
13
RING, SNAP 9 ECH-9242309000
...
14
RING, SNAP 24 ECH-9242424000
...
15
WASHER 6.5x11.5x0.8 ECH-90060000006
...
16
BOLT M6x10 ECH-9103006010
...
17
BOLT M5x10 ECH-90010505010
...
18
BOLT M5x40 ECH-V203000520
...
19
WASHER 5.5x12x0.8 ECH-90060300005
...
20
NUT M5 ECH-90050000005
...
21
PLATE, SHIELD MOUNTING ECH-C551000050
...
22
PLATE, ADAPTOR - UPPER ECH-C535000820
...
23
PLATE, ADAPTOR - LOWER ECH-C535000830
...
24
GUARD, BOLT ECH-C535000600
...
25
BOLT M7x20 ECH-V216000060
...
...
...
...
...
