Echo C242 Brushcutter

Model: C242

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

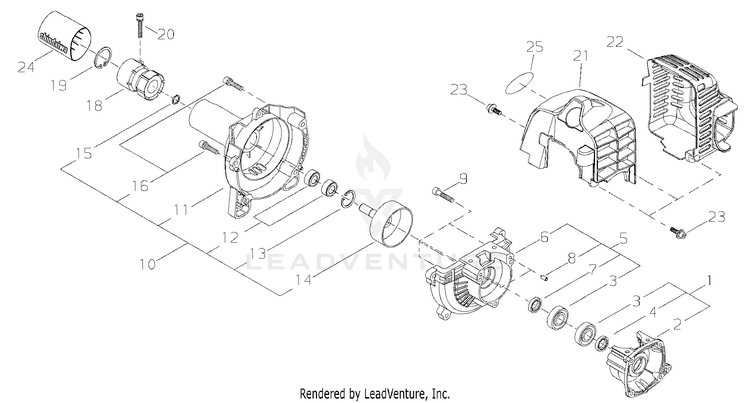

Crankcase, Fan Cover

...
...
1
CRANKCASE ASSY, S ECH-P021028010
...
2
CRANKCASE S ECH-A120000140
...
3
BEARING, BALL 6001 C3 ECH-V592000310
...
4
SEAL, OIL 12 ECH-V505000070
...
5
CRANKCASE ASSY, M ECH-P021028020
...
6
CRANKCASE M ECH-A120000130
...
3
BEARING, BALL 6001 C3 ECH-V592000310
...
7
SEAL, OIL 12 ECH-V505000080
...
8
PIN, LOCATING 4x8 ECH-90033040080
...
9
BOLT 5x25 ECH-90010505025
...
10
COVER ASSY, FAN ECH-P021028040
...
11
COVER, FAN ECH-A172001700
...
12
BEARING, BALL 6000DDU ECH-90080206000
...
13
RING, SNAP 26 ECH-9242426000
...
14
DRUM, CLUTCH ECH-A556001300
...
15
RING, SNAP 10 ECH-90070600010
...
16
BOLT 5x16 ECH-V203000591
...
18
CUSHION, AV ECH-A575000470
...
19
RING, SNAP 40 ECH-9242440000
...
20
BOLT M5x22 ECH-V203000620
...
21
COVER, ENGINE ECH-A160002280
...
22
COVER, MUFFLER ECH-A320000870
...
23
BOLT M4x16 ECH-9111304016
...
24
PROTECTOR ECH-A413000000
...
25
LABEL - MODEL T242 ECH-X504006020
...
...
...
...
...
