Echo C242 Brushcutter

Model: C242

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

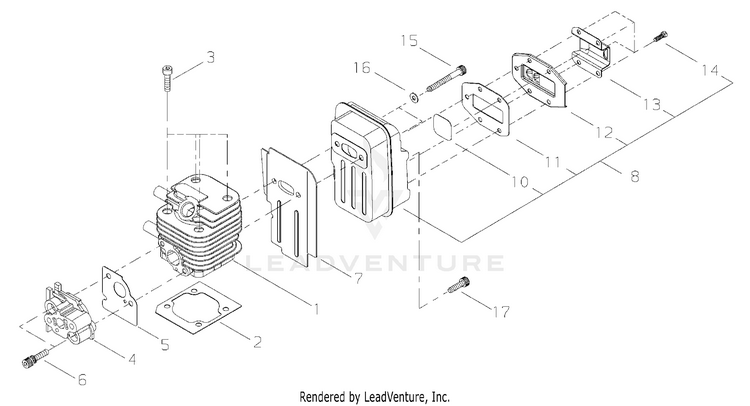

Cylinder, Muffler

...
...
1
CYLINDER ECH-A130001120
...
2
GASKET, CYLINDER ECH-V100000340
...
3
BOLT 5x16 ECH-90010505016
...
4
INSULATOR ECH-A200000440
...
5
HEAT SHIELD, INTAKE ECH-V103000660
...
6
BOLT SS M5x30 ECH-V203000480
...
7
HEAT SHIELD, EXHAUST ECH-V104002200
...
8
MUFFLER ASSY ECH-A030000110
...
10
SCREEN, SPARK ARRESTER ECH-A310000170
...
11
GASKET, EXHAUST ECH-V104001100
...
12
COVER, SPARK ARRESTER ECH-A313001220
...
13
OUTLET, EXHAUST ECH-A313001230
...
14
SCREW M4x8 ECH-90028304008
...
15
BOLT M5x55 ECH-9110905055
...
16
WASHER SS 5 MM ECH-90060400005
...
17
BOLT 5x12 ECH-90010505012
...
...
...
...
...
