Echo C242 Brushcutter

Model: C242

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

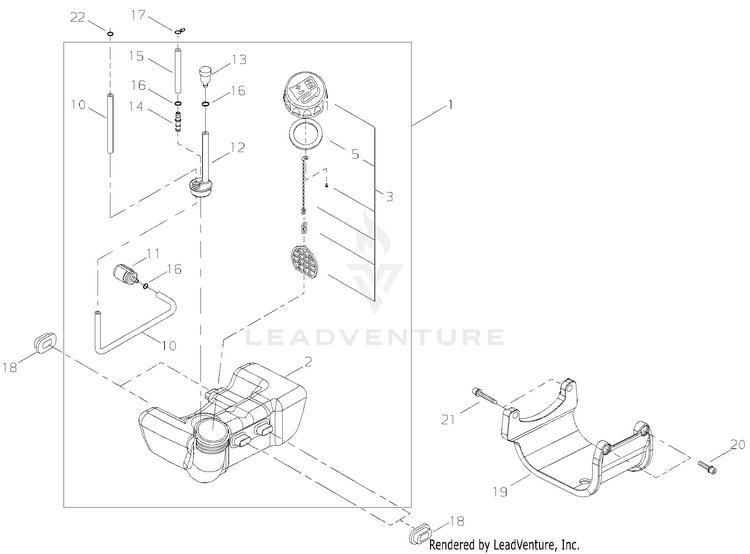

Fuel Tank

...
...
1
FUEL TANK ECH-A038000512
...
2
TANK, FUEL ECH-A350001090
...
3
CAP ASSY, FUEL ECH-A033000020
...
5
GASKET, FUEL CAP ECH-V107000010
...
10
FUEL PIPE ECH-V471002481
...
11
FILTER, FUEL ECH-A369000470
...
12
GROMMET, FUEL W/VENT PIPE ECH-V470000890
...
13
VENT ASSY ECH-A356000040
...
14
CONNECTOR, PIPE ECH-V186000210
...
15
PIPE, FUEL RETURN ECH-V471002740
...
16
CLIP 6 ECH-V490000500
...
17
CLIP, SPRING 5.2 ECH-V490000510
...
18
CUSHION, FUEL TANK ECH-V420002220
...
19
GUARD, FUEL TANK ECH-A175000080
...
20
BOLT M5x18 ECH-V203000541
...
21
BOLT M5x40 ECH-V203000520
...
22
CLIP 6 ECH-V490000500
...
...
...
...
...
