product name

Echo C242 Brushcutter

Model: C242

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

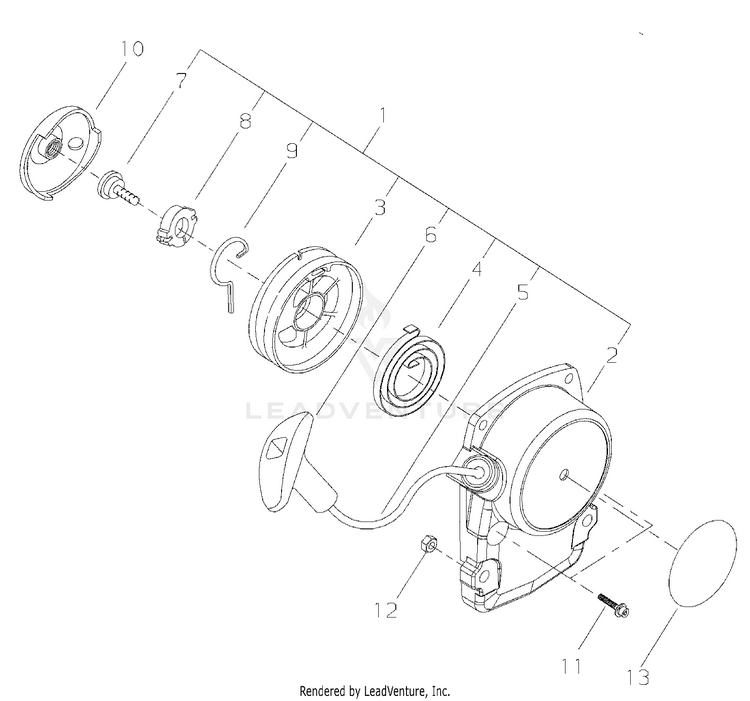

Starter

...
...
1
STARTER ASSY, RECOIL ECH-A051001540
...
2
CASE, RECOIL STARTER ECH-A500000680
...
3
REEL, ROPE ECH-A506000180
...
4
SPRING, RECOIL ECH-A504000090
...
5
ROPE, STARTER 3x850 ECH-P022006231
...
6
GRIP, STARTER ECH-17722844330
...
7
SCREW 5 ECH-V253000310
...
8
WASHER 5 ECH-V353000310
...
9
ARM, SWING ECH-C810000120
...
10
PULLEY, STARTER ECH-A052000300
...
11
BOLT M4x16 ECH-9111304016
...
12
NUT M5 ECH-90050000005
...
13
LABEL - C242 ECH-X504001130
...
...
...
...
...
