Echo C242 Brushcutter

Model: C242

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

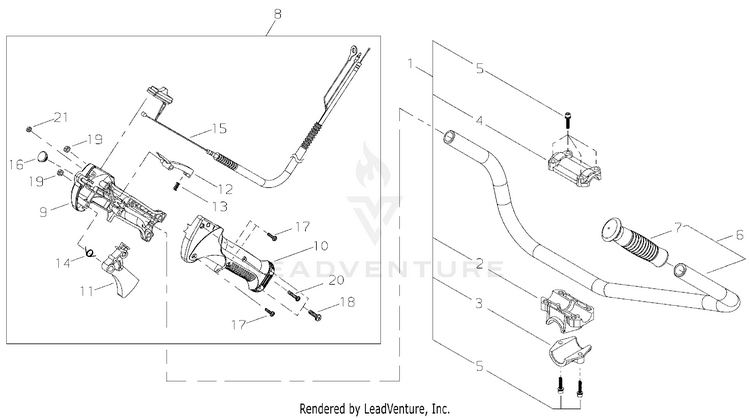

Handle Assembly, Throttle Lever Assembly

...
...
1
BRACKET ASSY ECH-P021024921
...
2
BRACKET, LOWER HANDLEBAR ECH-C423000440
...
3
BRACKET, MOUNTING ECH-C423000450
...
4
BRACKET, UPPER HANDLEBAR ECH-C423000520
...
5
BOLT M5x25 ECH-V203000630
...
6
HANDLEBAR ASSY ECH-C080000120
...
7
GRIP ECH-C403000210
...
8
THROTTLE CONTROL ASSY ECH-C044000370
...
9
CONTROL HANDLE - RIGHT ECH-C401000100
...
10
HANDLE KIT, CONTROL ECH-P021044970
...
11
TRIGGER, THROTTLE ECH-C450000581
...
12
LOCKOUT, THROTTLE ECH-C460000241
...
13
SPRING, COMPRESSION ECH-V450001020
...
14
SPRING, TORSION ECH-V452000690
...
15
CABLE ASSY, CONTROL ECH-V043000400
...
16
PLUG, RUBBER ECH-V162000410
...
17
SCREW, TAPPING 4x16 ECH-V252000360
...
18
SCREW M5x20 ECH-V253000580
...
19
NUT M5 ECH-9201705000
...
20
SCREW M4x23 ECH-V252000370
...
21
NUT M4 ECH-V262000100
...
...
...
...
...
