Echo BRD-280 S/N: S70711001001 - S70711999999 Bed Redefiner

Model: BRD-280 S/N: S70711001001 - S70711999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

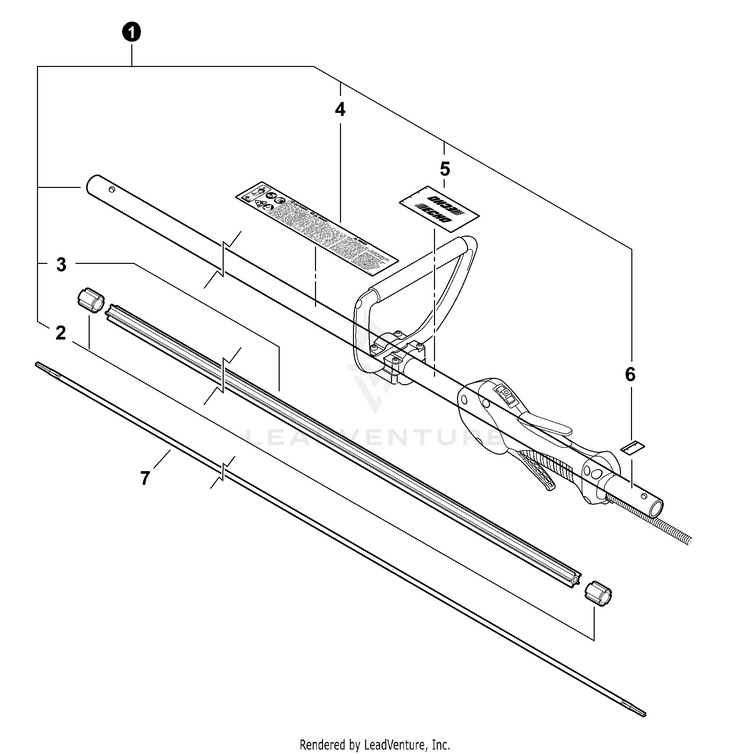

Main Pipe S/N: S70711001001-S70711004110

...
...
1
PIPE, MAIN Includes Items 2-6 ECH-C050001301
...
2
STOPPER ECH-61024644730
...
3
LINER, FLEXIBLE ECH-C507000430
...
4
LABEL - CAUTION ECH-X505009790
...
5
LABEL - HANDLE LOCATION ECH-X505012260
...
6
LABEL - ALIGNMENT ECH-89015204930
...
7
DRIVESHAFT - FLEXIBLE ECH-C506000390
...
...
...
...
...
