Echo BRD-280 S/N: S70711001001 - S70711999999 Bed Redefiner

Model: BRD-280 S/N: S70711001001 - S70711999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

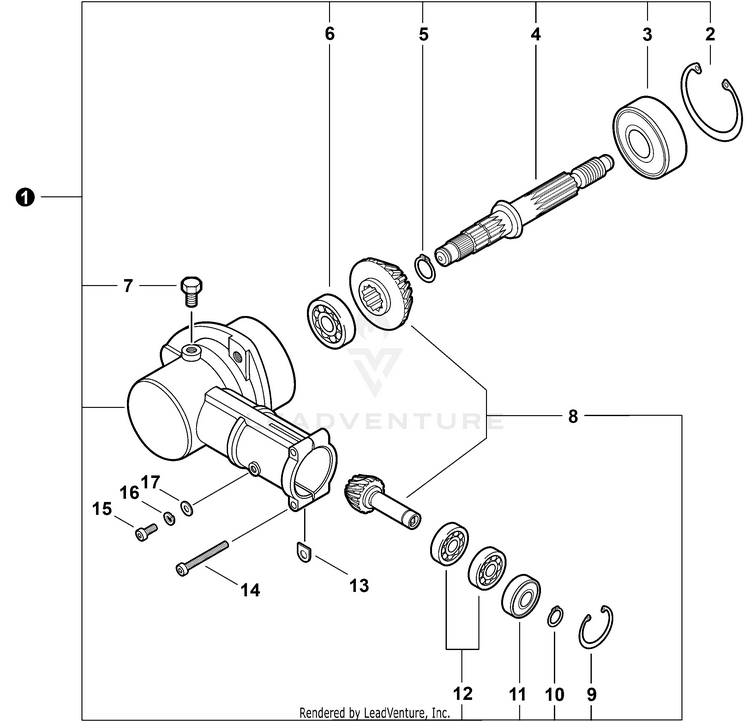

Gear Case S/N: S70711001001-S70711004066

...
...
1
GEAR CASE ASSY Inlcudes Items 2-12 ECH-P021049410
...
2
RING, SNAP 42 ECH-90070200042
...
3
BEARING, BALL 6302 ECH-90081206302
...
4
GEAR CASE ASSY ECH-P021049410
...
5
RING, SNAP 12 ECH-90070600012
...
6
BEARING, BALL 629 ECH-90081000629
...
7
BOLT M8x8 ECH-61043450031
...
8
GEAR CASE ASSY ECH-P021049410
...
9
RING, SNAP 22 ECH-90070200022
...
10
RING, SNAP 10 ECH-90070600010
...
11
BEARING, BALL 6900Z ECH-90085806900
...
12
BEARING, BALL 6900 ECH-90085506900
...
13
D-WASHER ECH-61023904130
...
14
BOLT, TORX 5x25 ECH-V805000170
...
15
BOLT, TORX 5x12 ECH-V805000140
...
16
WASHER, SPRING 5 ECH-90060500005
...
17
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
...
...
...
...
