Echo BRD-280 S/N: S70711001001 - S70711999999 Bed Redefiner

Model: BRD-280 S/N: S70711001001 - S70711999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

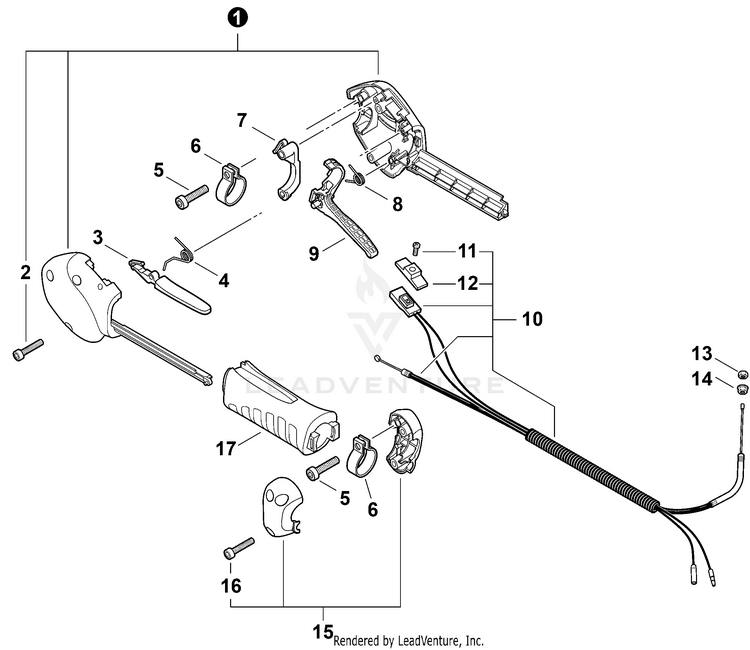

Throttle Control S/N: S70711001001-S70711002517

...
...
1
HANDLE KIT, CONTROL Includes Item 2 ECH-P021015900
...
2
BOLT, TORX 4x20 ECH-V804000020
...
3
LEVER, THROTTLE LOCKOUT ECH-C460000051
...
4
SPRING, TORSION ECH-V452000240
...
5
BOLT, TORX 5x20 ECH-V805000160
...
6
CLAMP ECH-V495000680
...
7
LOCKOUT, THROTTLE ECH-C453000151
...
8
SPRING, TORSION ECH-V452000212
...
9
TRIGGER, THROTTLE ECH-C450000183
...
10
CABLE ASSY, CONTROL Includes Items 11-12 ECH-P021015650
...
11
SCREW 3x10 ECH-9154503010
...
12
KNOB, SWITCH - ORANGE ECH-A444000020
...
13
NUT M6 ECH-90050200006
...
14
NUT, FLANGE M6 ECH-90051800006
...
15
FIXTURE SET, HANDLE Includes Item 16 ECH-P021015910
...
16
BOLT, TORX 4x20 ECH-V804000020
...
17
GRIP, HANDLE ECH-C412000090
...
...
...
...
...
