Echo BRD-280 S/N: S70711001001 - S70711999999 Bed Redefiner

Model: BRD-280 S/N: S70711001001 - S70711999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

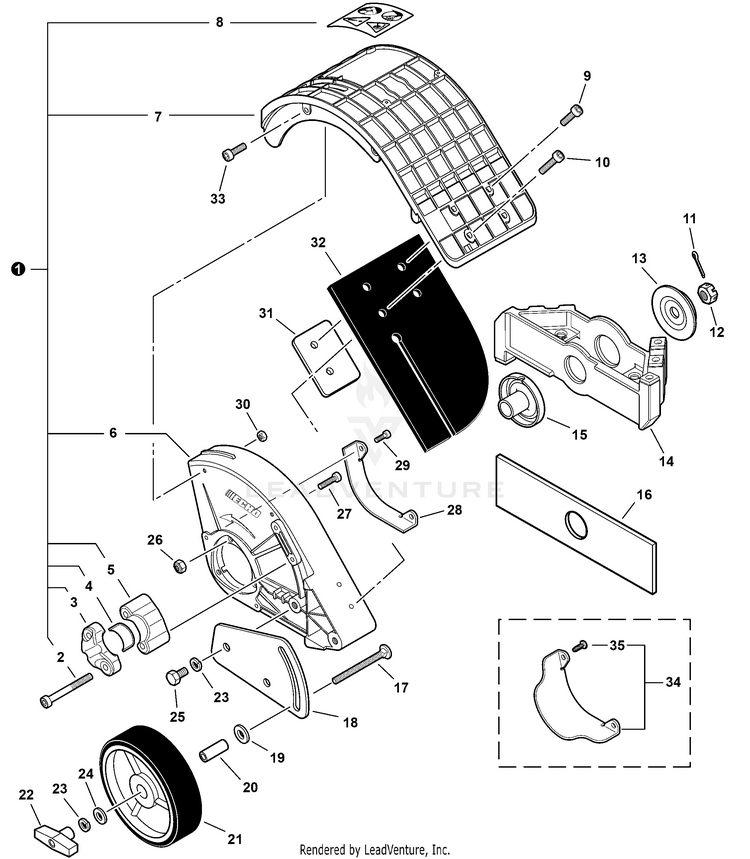

Redefining Assembly S/N: S70711001039-S70711999999

...
...
1
SHIELD KIT -EDGER Includes Items 2-8 ECH-P021035462
...
2
SCREW - 6x35 ECH-V806000070
...
3
BRACKET - OUTER ECH-C518000130
...
4
PAD, FOAM ECH-V129000130
...
5
BRACKET - INNER ECH-C518000140
...
6
SHIELD, BLADE ECH-C550000272
...
7
SHIELD, DEBRIS ECH-C550000282
...
8
LABEL - CAUTION ECH-X505002591
...
9
BOLT, TORX 4x12 ECH-V804000000
...
10
BOLT, TORX 4x16 ECH-V804000010
...
11
PIN, COTTER 2x22 ECH-90030020022
...
12
NUT 10x1.25 LH ECH-90051300010
...
13
PLATE, ADAPTOR - LOWER ECH-C535000150
...
14
BLADE, REDEFINER ECH-99944208000
...
15
PLATE, ADAPTOR - UPPER ECH-C535000100
...
16
BLADE - 2 PK ECH-69601552632
...
17
BOLT 5/16"-18x2-1/2" ECH-61025055330
...
18
BRACKET, WHEEL ECH-C712000110
...
19
WASHER M10 ECH-90060200010
...
20
COLLAR 12 ECH-30242452630
...
21
WHEEL ECH-C730000120
...
22
KNOB, FASTENER ECH-V299000670
...
23
WASHER, SPRING 8 ECH-90060500008
...
24
WASHER 8 ECH-90060200008
...
25
BOLT 8x14 ECH-90010008014
...
26
NUT, LOCK M5 ECH-90056250005
...
27
BOLT, TORX 5x20 ECH-V805000160
...
28
GUARD, SHIELD ECH-69902552630
...
29
BOLT, TORX 4x12 ECH-V804000000
...
30
NUT, LOCK 4 ECH-90056000004
...
31
PLATE, FLAP ECH-C552000120
...
32
FLAP, DEBRIS ECH-C550000290
...
33
BOLT, TORX 4x12 ECH-V804000050
...
34
GUARD KIT, SHIELD Includes Item 35 OPTIONAL - REPLACES ITEMS 28-29 ECH-900104
...
35
SCREW 4x12 ECH-90025304012
...
...
...
...
...
