Echo AHS254 S/N: T76614001001 - T76614999999 Hedge Trimmer

Model: AHS254 S/N: T76614001001 - T76614999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

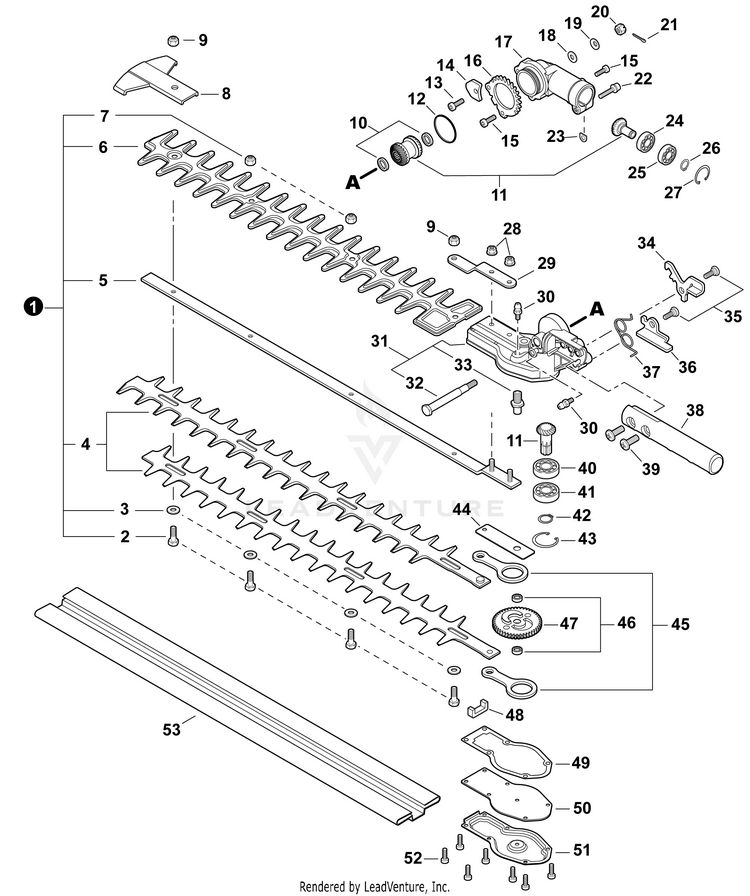

BLADES, GEAR CASE - WITH TIP GUARD

...
...
1
CUTTER ASSY, 22" Includes Items 2-7 ECH-X041000520
...
2
BOLT M6x20 ECH-V204000570
...
3
WASHER M6 ECH-V304000240
...
4
CUTTER 22" ECH-X411001151
...
5
GUIDE BAR 22" ECH-X425000940
...
6
GUARD, CUTTER BLADE ECH-X431000080
...
7
NUT M6 ECH-43302206460
...
8
GUARD, TIP ECH-E278000280
...
9
NUT M6 ECH-43302206460
...
10
COLLAR 16x10xL= 2 ECH-V307000250
...
11
GEAR SET ECH-P021035780
...
12
O-RING ECH-9250703150
...
13
SCREW M5x16 ECH-V254000100
...
14
PLATE, STOPPER ECH-C629000040
...
15
BOLT 5x12 ECH-90010505012
...
16
RING, LOCKING ECH-C465000020
...
17
HOUSING, UPPER GEAR CASE ECH-C531000700
...
18
WASHER 6.5x13x1 ECH-90060300006
...
19
WASHER, CONE M6 ECH-V347000030
...
20
NUT M6 ECH-V264000170
...
21
PIN, COTTER 1.6x15 ECH-9300216150
...
22
BOLT M5x25 ECH-V203000560
...
23
D-WASHER ECH-V340000300
...
24
BEARING, BALL 609 ECH-90080000609
...
25
BEARING, BALL 609ZZ ECH-90080400609
...
26
RING, SNAP 9 ECH-90070600009
...
27
RING, SNAP 24 ECH-90070200024
...
28
NUT, FLANGE M5 ECH-V263000330
...
29
BRACKET, CUTTER ECH-V152002391
...
30
FITTING, GREASE ECH-V187000080
...
31
HOUSING ASSY, GEAR CASE Includes Items 32-33 ECH-P021028811
...
32
SHAFT ECH-C534000670
...
33
MAINSHAFT ECH-C534000660
...
34
LEVER, LOCK ECH-C661000070
...
35
BOLT M6 ECH-V204000580
...
36
RELEASE, LOCK ECH-C661000080
...
37
SPRING, TORSION ECH-V452000710
...
38
LEVER, ADJUSTMENT ECH-C403000480
...
39
SCREW, TRUSS M6x20 ECH-9146306020
...
40
BEARING, BALL 6001 ECH-90080036001
...
41
BEARING, BALL 6001ZZ ECH-90080406001
...
42
RING, SNAP 12 ECH-9242312000
...
43
RING, SNAP 28 ECH-90070200028
...
44
PLATE, GUIDE ECH-V150002460
...
45
CONROD ECH-C532000220
...
46
SPACER 11x8x3.4 ECH-V355000440
...
47
GEAR, CAM ECH-V650000530
...
48
PACKING, FELT ECH-V541000220
...
49
GASKET, GEAR CASE ECH-V110000140
...
50
SPACER ECH-C542000040
...
51
COVER, GEAR CASE ECH-C539000081
...
52
BOLT 4x10 ECH-90010504010
...
53
SCABBARD ECH-X495000590
...
...
...
...
...
