Echo AH262 S/N: U02415001001 - U02415999999 Hedge Trimmer

Model: AH262 S/N: U02415001001 - U02415999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

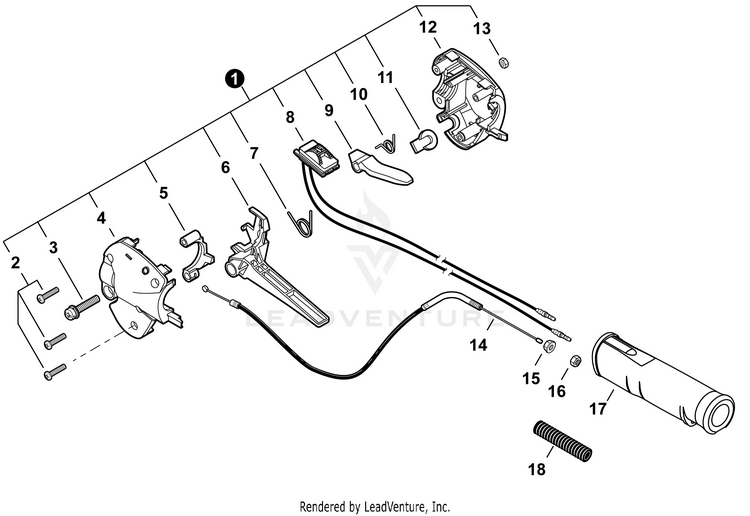

CONTROL HANDLE

...
...
1
THROTTLE CONTROL ASSY Includes Items 2-13 ECH-P021051730
...
2
SCREW ECH-P022032480
...
3
BOLT, TORX 5x16 ECH-V805000150
...
4
CONTROL HANDLE - LEFT ECH-P022025700
...
5
LOCKOUT, THROTTLE ECH-C461000020
...
6
TRIGGER, THROTTLE ECH-C450000480
...
7
SPRING, THROTTLE RETURN ECH-V452000700
...
8
SWITCH, ON-OFF ECH-P022043950
...
9
LEVER, THROTTLE LOCKOUT ECH-C460000190
...
10
SPRING, THROTTLE LOCKOUT ECH-V452000500
...
11
PLUG ECH-P022025790
...
12
CONTROL HANDLE - RIGHT ECH-P022035250
...
13
NUT M5 ECH-90050000005
...
14
CABLE, THROTTLE ECH-V430004990
...
15
NUT, FLANGE M6 ECH-90051800006
...
16
NUT M6 ECH-90050200006
...
17
GRIP, HANDLE ECH-C403000612
...
18
TUBE, NYLON PROTECTIVE ECH-V475009230
...
...
...
...
...
