Echo AH254 S/N: T12711001001 - T12711999999 Hedge Trimmer

Model: AH254 S/N: T12711001001 - T12711999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

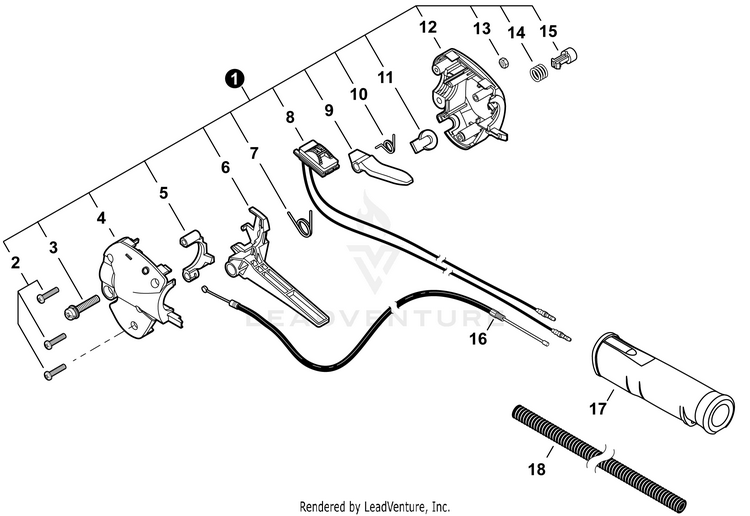

THROTTLE CONTROL

...
...
1
THROTTLE CONTROL ASSY Includes Items 2-15 ECH-C044001100
...
2
SCREW ECH-P022032480
...
3
SCREW M5x20 ECH-9157505020
...
4
CONTROL HANDLE - LEFT ECH-C401000150
...
5
LOCKOUT, THROTTLE ECH-C461000020
...
6
TRIGGER, THROTTLE ECH-C450000480
...
7
SPRING, THROTTLE RETURN ECH-V452000700
...
8
SWITCH, ON-OFF ECH-A440001570
...
9
LEVER, THROTTLE LOCKOUT ECH-C460000190
...
10
SPRING, THROTTLE LOCKOUT ECH-V452000500
...
11
PLUG ECH-V162000350
...
12
CONTROL HANDLE - RIGHT ECH-C401000200
...
13
NUT M5 ECH-9201705000
...
14
SPRING, COMPRESSION ECH-V450001010
...
15
BUTTON, THROTTLE LOCK ECH-C461000080
...
16
CABLE, THROTTLE ECH-V430003320
...
17
GRIP, REAR ECH-C412000261
...
18
TUBE, NYLON PROTECTIVE ECH-V475004470
...
...
...
...
...
