Echo AH254 S/N: T12711001001 - T12711999999 Hedge Trimmer

Model: AH254 S/N: T12711001001 - T12711999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

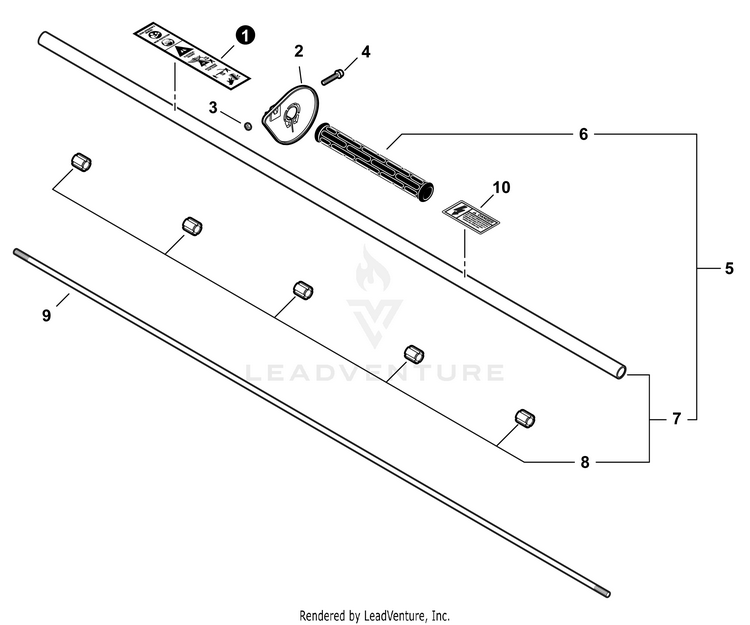

MAIN PIPE

...
...
1
LABEL - CAUTION ECH-X505003440
...
2
GUARD, HAND ECH-C440000050
...
3
NUT M5 ECH-90050000005
...
4
SCREW M5x30 ECH-9157705030
...
5
MAIN PIPE ASSY WITH GRIP Includes Items 6-8 ECH-C050002090
...
6
GRIP, FRONT ECH-C403000470
...
7
MAIN PIPE ASSY Includes Item 8 ECH-C050002650
...
8
BUSHING ECH-C501000010
...
9
MAINSHAFT ECH-C504000500
...
10
LABEL - HIGH VOLTAGE ECH-X505003480
...
...
...
...
...
