Echo AH254 S/N: T12711001001 - T12711999999 Hedge Trimmer

Model: AH254 S/N: T12711001001 - T12711999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

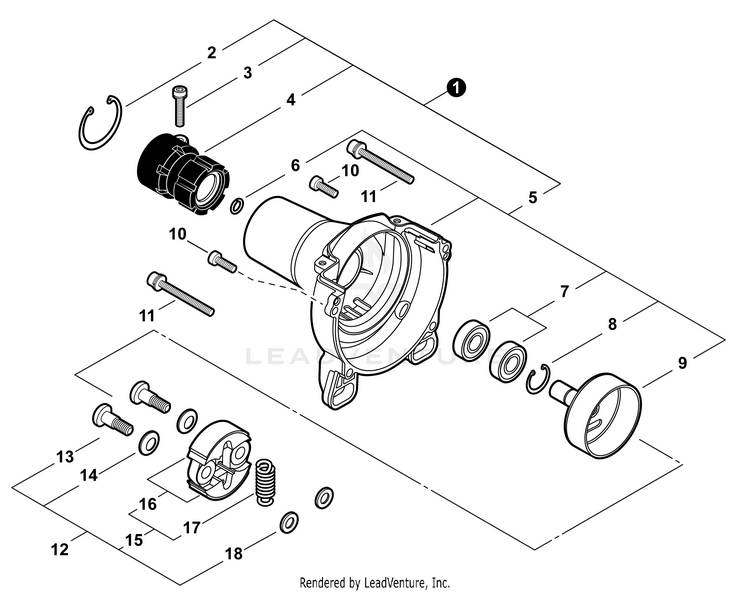

FAN CASE

...
...
1
COVER ASSY, FAN Includes Items 2-9 ECH-P021036580
...
2
RING, SNAP 40 ECH-9242440000
...
3
BOLT M5x22 ECH-V203000620
...
4
CUSHION, AV ECH-A575000470
...
5
COVER KIT, FAN Includes Items 6-9 ECH-P021036590
...
6
RING, SNAP 10 ECH-90070600010
...
7
BEARING, BALL 6000ZZ ECH-9404406000
...
8
RING, SNAP 26 ECH-90070200026
...
9
DRUM, CLUTCH ECH-A556001300
...
10
BOLT M5x16 ECH-9110105016
...
11
BOLT M5x45 ECH-V203000780
...
12
CLUTCH ASSY Includes Items 13-18 ECH-A056000521
...
13
BOLT, CLUTCH ECH-A557000040
...
14
WASHER, SPRING ECH-V346000040
...
15
CLUTCH ASSY Includes Items 16-17 ECH-A056000521
...
16
SHOE, CLUTCH ECH-A553000060
...
17
SPRING, CLUTCH ECH-A566000201
...
18
WASHER 6 MM ECH-V304000150
...
...
...
...
...
