Echo AH254 S/N: T12711001001 - T12711999999 Hedge Trimmer

Model: AH254 S/N: T12711001001 - T12711999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

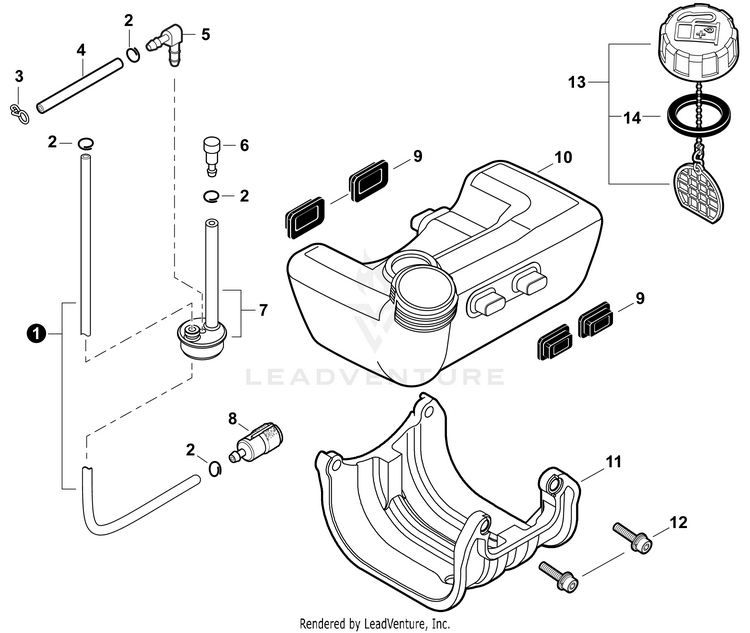

FUEL SYSTEM S/N T12711001001 - T12711001282

...
...
1
PIPE, FUEL 3.3x6x160 ECH-V471002350
...
2
CLIP 6 ECH-V490000500
...
3
CLIP, SPRING 5.2 ECH-V490000510
...
4
PIPE, FUEL RETURN L= 52.5 MM ECH-V471002360
...
5
CONNECTOR, PIPE ECH-V186000270
...
6
VENT ASSY ECH-A356000050
...
7
GROMMET, FUEL W/VENT PIPE ECH-V470000880
...
8
FILTER, FUEL ECH-A369000440
...
9
CUSHION, FUEL TANK ECH-V420002220
...
10
TANK, FUEL ECH-A350001022
...
11
GUARD, NYLON FUEL TANK ECH-A175000220
...
12
BOLT M5x20 ECH-V203000800
...
13
CAP ASSY, FUEL Includes Item 14 ECH-A033000330
...
14
GASKET, FUEL CAP ECH-V107000010
...
...
...
...
...
