Echo AH254 S/N: T12711001001 - T12711999999 Hedge Trimmer

Model: AH254 S/N: T12711001001 - T12711999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

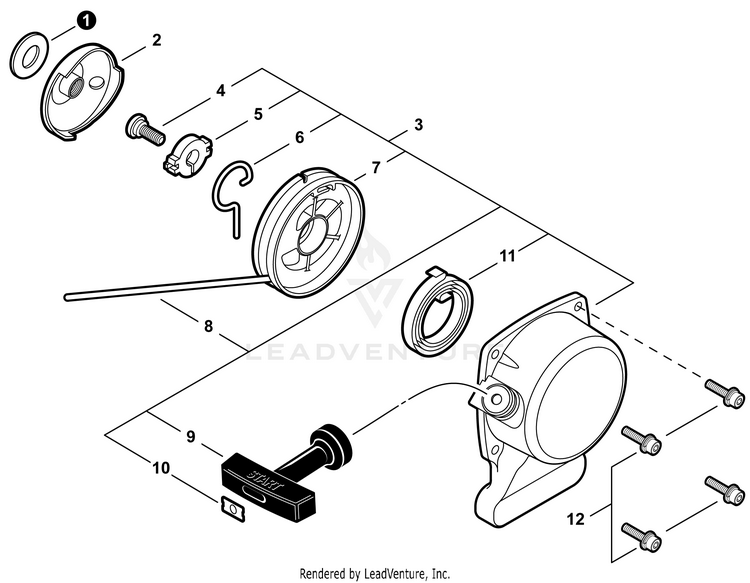

RECOIL STARTER

...
...
1
WASHER 8 ECH-V306000280
...
2
PULLEY, STARTER ECH-A520000140
...
3
STARTER ASSY, RECOIL Includes Items 4-11 ECH-A051002220
...
4
SCREW 5 ECH-V253000310
...
5
WASHER 5 ECH-V353000310
...
6
ARM, SWING ECH-C810000120
...
7
REEL, ROPE ECH-A506000180
...
8
ROPE, STARTER ECH-A509000150
...
9
GRIP, STARTER ECH-17722827030
...
10
RETAINER, ROPE ECH-P022037670
...
11
SPRING, RECOIL ECH-A504000090
...
12
BOLT M4x16 ECH-V202000280
...
...
...
...
...
