Echo AH254 S/N: T12711001001 - T12711999999 Hedge Trimmer

Model: AH254 S/N: T12711001001 - T12711999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

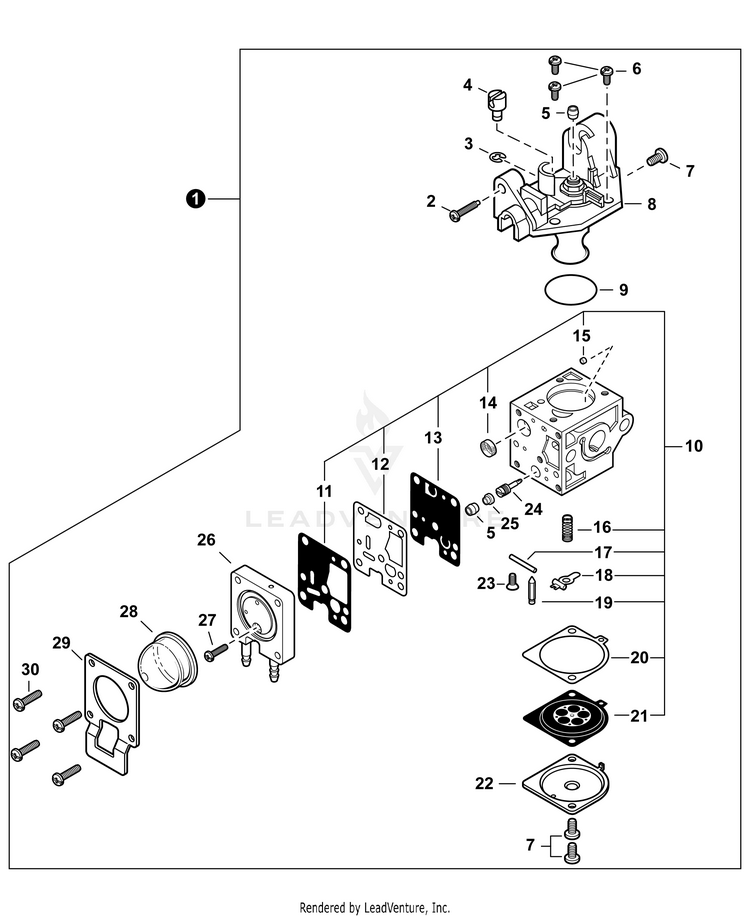

CARBURETOR

...
...
1
CARBURETOR - RB-K99 Includes Items 2-30 ECH-A021003292
...
2
SCREW, THROTTLE ADJUST ECH-P005002110
...
3
E-RING ECH-P005000190
...
4
SWIVEL ECH-P005002090
...
5
PLUG ECH-P005001270
...
6
SCREW ECH-12534413931
...
7
SCREW ECH-12534452130
...
8
COVER ASSY, ROTOR ECH-P005002100
...
9
O-RING ECH-P005000280
...
10
REPAIR KIT, CARBURETOR Includes Items 11-21 ECH-P005002510
...
11
DIAPHRAGM, SURGE ECH-P005000230
...
12
GASKET, PUMP ECH-P005000220
...
13
DIAPHRAGM, PUMP ECH-P005000210
...
14
SCREEN, FUEL INLET ECH-P005000010
...
15
GUIDE, ROLLER ECH-P005001000
...
16
SPRING, METERING LEVER ECH-P005000940
...
17
PIN, METERING LEVER ECH-12533813930
...
18
LEVER, METERING ECH-12532308260
...
19
VALVE, INLET NEEDLE ECH-12533708260
...
20
GASKET, METERING DIAPHRAGM ECH-P005000200
...
21
DIAPHRAGM, METERING ECH-P005002230
...
22
COVER, METERING DIAPHRAGM ECH-12534252130
...
23
SCREW ECH-12533942030
...
24
NEEDLE, HIGH SPEED ECH-P005001260
...
25
CAP, LIMITER ECH-P005001250
...
26
BODY ASSY, PURGE ECH-P005002130
...
27
SCREW ECH-P005000270
...
28
BULB, PURGE ECH-P005003110
...
29
RETAINER, PURGE BULB ECH-P005000250
...
30
SCREW ECH-P005001900
...
...
...
...
...
