Echo AH242 S/N: T17511001001 - T17511999999 Hedge Trimmer

Model: AH242 S/N: T17511001001 - T17511999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

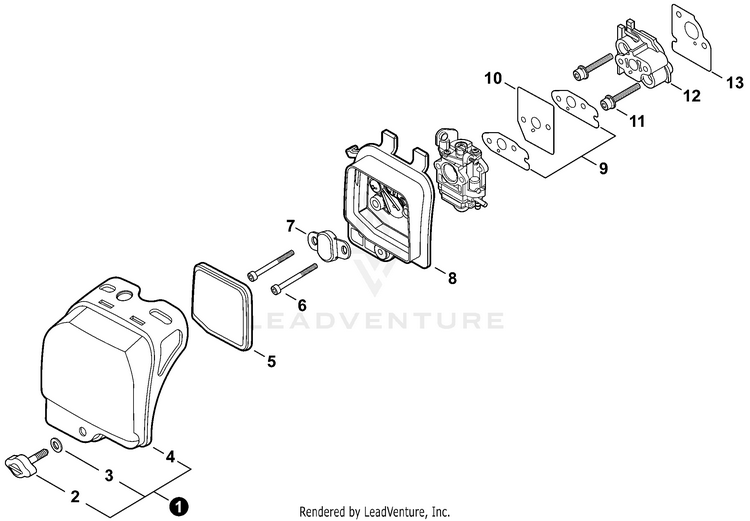

INTAKE

...
...
1
COVER ASSY, AIR FILTER Includes Items 2-4 ECH-A232000640
...
2
THUMBSCREW ECH-V299000340
...
3
WASHER 5 ECH-V323000080
...
4
COVER, AIR FILTER ECH-A232000630
...
5
FILTER, AIR ECH-A226001390
...
6
BOLT M5x60 ECH-9110905060
...
7
BRACKET ECH-A244000120
...
8
CASE ASSY, AIR FILTER ECH-A023000290
...
9
GASKET, INTAKE ECH-V103001060
...
10
PLATE, INSULATOR ECH-A209000460
...
11
BOLT 5x30 ECH-90016205030
...
12
INSULATOR, INTAKE ECH-A200000910
...
13
HEAT SHIELD, INTAKE ECH-V103000660
...
...
...
...
...
