Echo AH242 S/N: T17511001001 - T17511999999 Hedge Trimmer

Model: AH242 S/N: T17511001001 - T17511999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

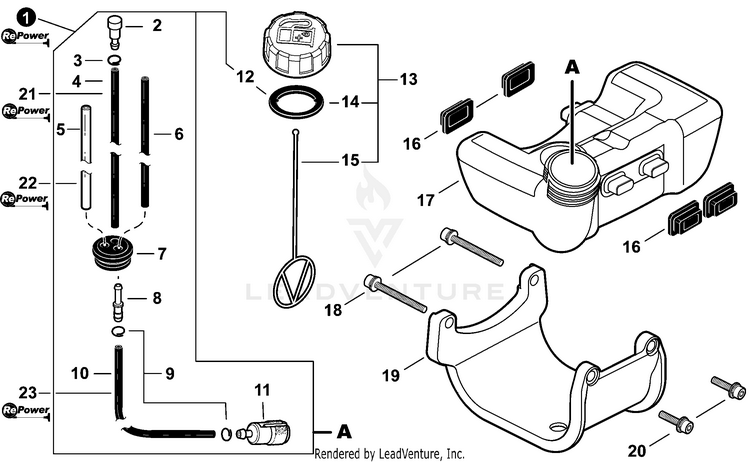

FUEL SYSTEM S/N: T17511002548 - T17511999999

...
...
1
FUEL SYSTEM KIT - YOUCAN™ Includes Items 2-12 ECH-84000Y
...
2
VENT ASSY ECH-A356000040
...
3
CLIP 6.5 MM ECH-V490001230
...
4
PIPE 3*6*105 RePower BULK OPTION: 90015 ECH-13011054431
...
5
PIPE, FUEL 3x6x85 YELLOW RePower BULK OPTION: 90017 ECH-V471006070
...
6
PIPE, FUEL 3x5.5x74 BLACK RePower BULK OPTION: N/A ECH-V471005620
...
7
GROMMET, FUEL ECH-13211555931
...
8
CONNECTOR, PIPE 5x3.5 ECH-V186000520
...
9
CLIP 6 ECH-V490001240
...
10
PIPE, FUEL 3x5x140 BLACK RePower BULK OPTION: 90014 ECH-V471003731
...
11
FILTER, FUEL ECH-A369000440
...
12
GASKET, FUEL CAP ECH-V107000150
...
13
CAP ASSY, FUEL Includes Items 14-15 ECH-P021041930
...
14
GASKET, FUEL CAP Included In RePower KIT ECH-V107000150
...
15
CONNECTOR, CAP L= 123 ECH-A365000060
...
16
CUSHION, FUEL TANK ECH-V420002220
...
17
TANK, FUEL ECH-A350000972
...
18
BOLT 5x40 ECH-90016205040
...
19
GUARD, FUEL TANK ECH-A175000080
...
20
BOLT 5x18 ECH-90016205018
...
21
BULK PIPE - 3x6 MM BLACK (4 PIECESx2 M) RePower BULK OPTION ECH-90015
...
22
BULK PIPE - 3x6 MM CLEAR (4 PIECESx2 M) RePower BULK OPTION ECH-90017
...
23
BULK PIPE - 3x5 MM BLACK (4 PIECESx2 M) RePower BULK OPTION ECH-90014
...
...
...
...
...
