Echo AH242 S/N: T17511001001 - T17511999999 Hedge Trimmer

Model: AH242 S/N: T17511001001 - T17511999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

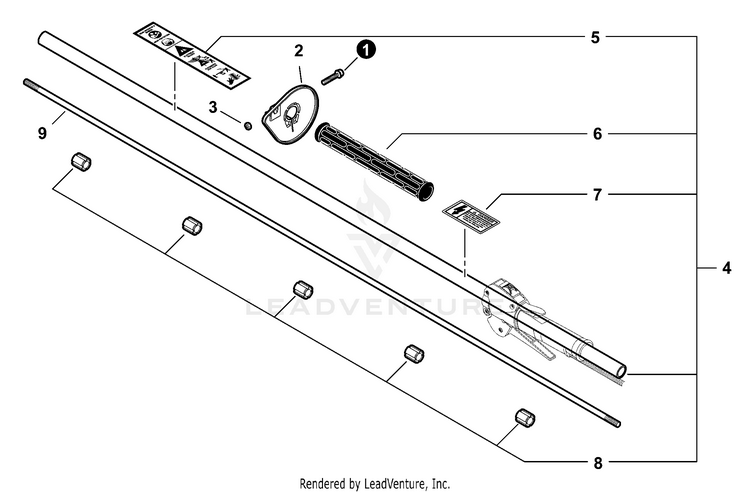

MAIN PIPE S/N: T17511001001 - T17511004818

...
...
1
SCREW M5x30 ECH-9157705030
...
2
GUARD, HAND ECH-C440000050
...
3
NUT M5 ECH-90050000005
...
4
MAIN PIPE ASSY WITH GRIP Indludes Items 5-8 ECH-P021039070
...
5
LABEL - CAUTION ISO ECH-X505011540
...
6
GRIP, FRONT ECH-C403000470
...
7
LABEL - HIGH VOLTAGE ECH-X505003480
...
8
BUSHING ECH-C501000010
...
9
MAINSHAFT ECH-C504000500
...
...
...
...
...
