Echo AH242 S/N: T17511001001 - T17511999999 Hedge Trimmer

Model: AH242 S/N: T17511001001 - T17511999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

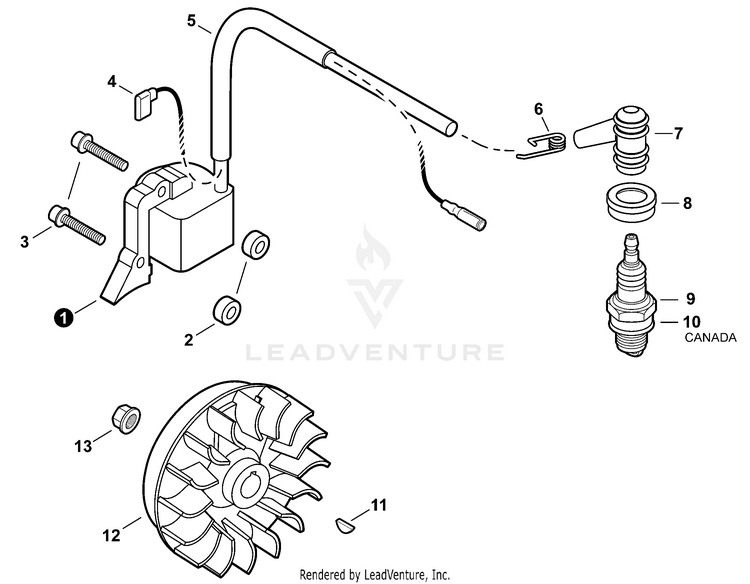

IGNITION

...
...
1
IGNITION COIL (T242) ECH-A411001541
...
2
INSULATOR 4.2x11x6 ECH-V322000040
...
3
BOLT, ADHESIVE M4x24 ECH-V202000480
...
4
LEAD - IGNITION L= 180 ECH-V485002470
...
5
TUBE, IGNITION COIL 8xL125 ECH-V475006600
...
6
TERMINAL, SPARK PLUG ECH-A426000010
...
7
CAP, SPARK PLUG ECH-A427000060
...
8
SEAL, SPARK PLUG ECH-A429000090
...
9
SPARK PLUG - BPM8Y ECH-15901019830
...
10
SPARK PLUG - BPMR8Y CANADA MODELS ECH-A425000000
...
11
KEY, WOODRUFF 3x10 ECH-9311503010
...
12
FLYWHEEL ECH-A409001060
...
13
NUT M8 ECH-V265000140
...
...
...
...
...
