Echo AH242 S/N: T17511001001 - T17511999999 Hedge Trimmer

Model: AH242 S/N: T17511001001 - T17511999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

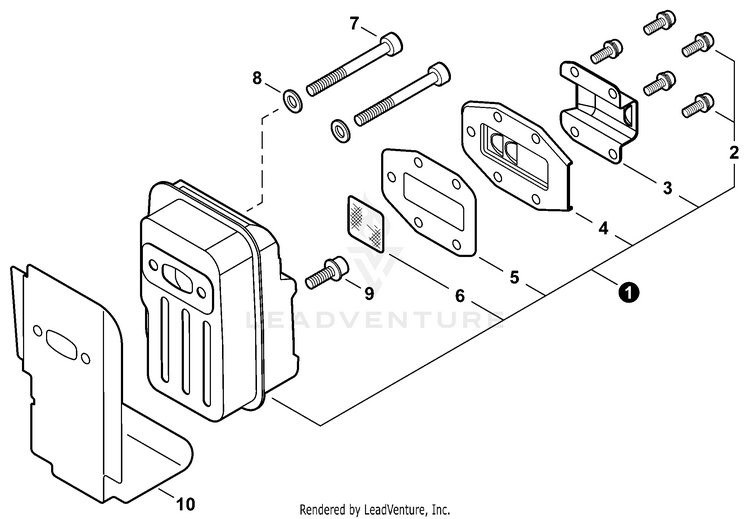

EXHAUST

...
...
1
MUFFLER ASSY Includes Items 2-6 ECH-P021037641
...
2
SCREW M4x8 ECH-90028304008
...
3
OUTLET, EXHAUST ECH-A313001230
...
4
GUIDE, EXHAUST ECH-A313001660
...
5
GASKET, EXHAUST ECH-V104001100
...
6
SCREEN, SPARK ARRESTER ECH-A310000170
...
7
BOLT M5x55 ECH-9110905055
...
8
WASHER SS 5 MM ECH-90060400005
...
9
BOLT 5x12 ECH-90010605012
...
10
HEAT SHIELD, EXHAUST ECH-V104002200
...
...
...
...
...
