Echo AH242 S/N: T17511001001 - T17511999999 Hedge Trimmer

Model: AH242 S/N: T17511001001 - T17511999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

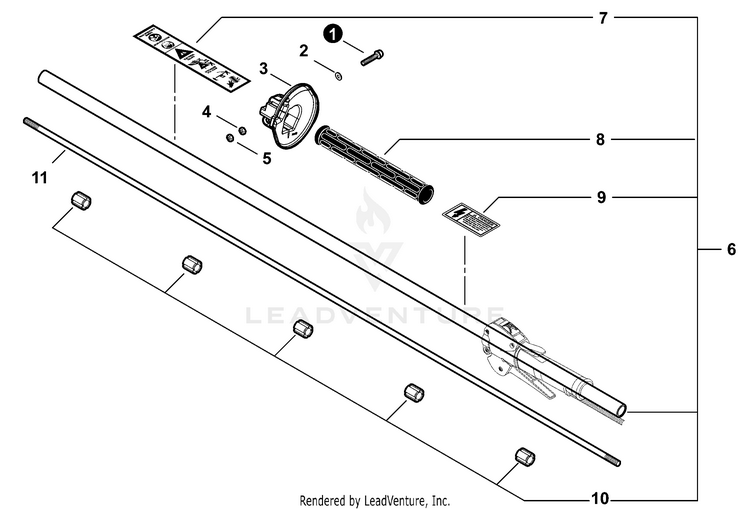

MAIN PIPE S/N: T17511004819 - T17511999999

...
...
1
SCREW - 5x35 ECH-90010505035
...
2
WASHER 5.5x12x0.8 ECH-90060300005
...
3
GUARD, HAND ECH-C440000110
...
4
WASHER 5.5x12x0.8 ECH-90060300005
...
5
NUT, LOCK M5 ECH-90056200005
...
6
MAIN PIPE ASSY WITH GRIP Indludes Items 7-11 ECH-P021039070
...
7
LABEL - CAUTION ISO ECH-X505011540
...
8
GRIP, FRONT ECH-C403000470
...
9
LABEL - HIGH VOLTAGE ECH-X505003480
...
10
BUSHING ECH-C501000010
...
11
MAINSHAFT ECH-C504000500
...
...
...
...
...
