Echo 99944200640 Mid-reach Hedge Trimmer Attachment S/N: T96900001001 - T96900999999

Model: 99944200640 Mid-reach Hedge Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

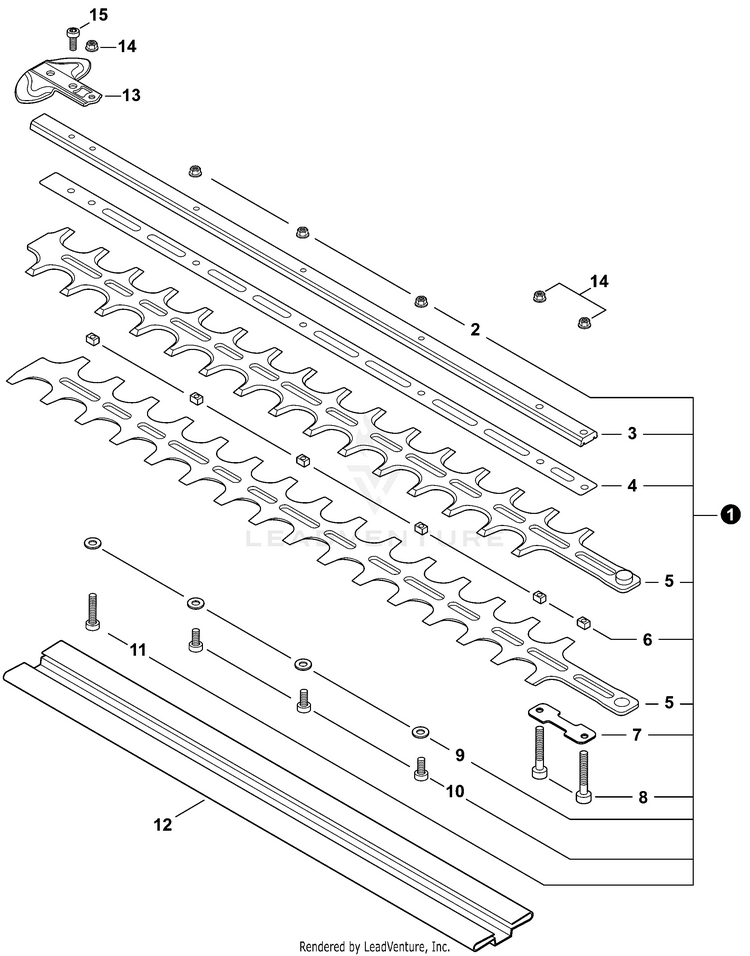

Cutters

...
...
1
CUTTER ASSY, 20" Includes Items 2-11 ECH-X041000610
...
2
NUT, FLANGE M5 ECH-9210805000
...
3
Cutter Support, 20", Shc-2620 ECH-X425001031
...
4
PLATE, CUTTER 20" ECH-X425001040
...
5
CUTTER, 20" ECH-X411001360
...
6
GUIDE, BLADE 5 ECH-V353000250
...
7
PLATE, EYE ECH-V150004330
...
8
BOLT, TORX 5x30 ECH-V805000180
...
9
WASHER ECH-V303000290
...
10
BOLT, TORX 5x20 ECH-V805000160
...
11
BOLT, TORX 5x25 ECH-V805000170
...
12
SCABBARD - BLACK ECH-X495000800
...
13
GUARD, TIP ECH-E278000311
...
14
NUT, FLANGE M5 ECH-9210805000
...
15
BOLT, TORX 5x8 ECH-V805000120

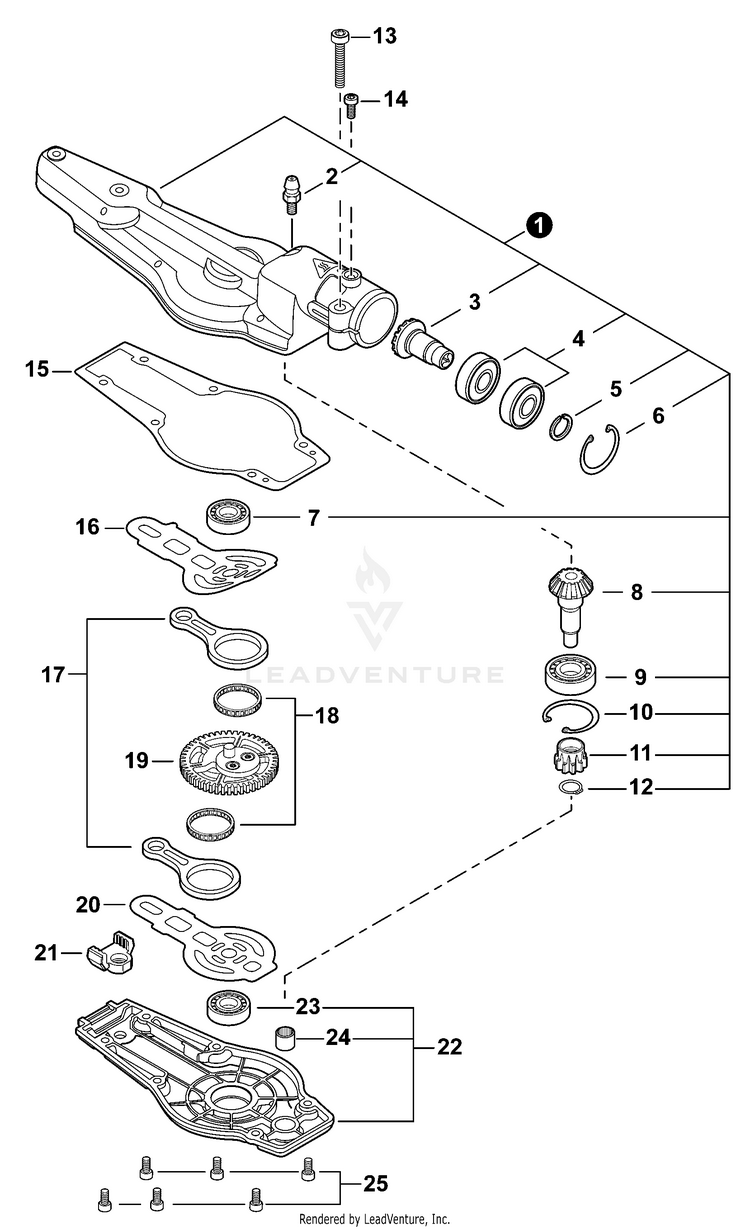

Gear Case

...
...
1
GEAR CASE ASSY Includes Items 2-12 ECH-P100002210
...
2
FITTING, GREASE ECH-V187000080
...
3
GEAR, BEVEL ECH-V651001070
...
4
BEARING, BALL 6901 ECH-90085706901
...
5
RING, SNAP 12 ECH-90070600012
...
6
RING, SNAP 24 ECH-90070200024
...
7
BEARING, BALL 608 ECH-90080000608
...
8
GEAR, BEVEL ECH-V651001080
...
9
BEARING, BALL 6001 ECH-90080036001
...
10
RING, SNAP 28 ECH-90070200028
...
11
GEAR, SPUR ECH-V650000730
...
12
RING, RETAINING 8 ECH-90070100008
...
13
BOLT, TORX 5x25 ECH-V805000170
...
14
BOLT, TORX 5x10 ECH-V805000130
...
15
GASKET, GEAR CASE ECH-V110000200
...
16
PLATE, WEAR ECH-V150004320
...
17
ROD, CONNECTING ECH-C532000530
...
18
BEARING, NEEDLE 30 ECH-V572000000
...
19
GEAR, SPUR ECH-V060000130
...
20
PLATE, WEAR ECH-V150004310
...
21
SEAL ECH-V541000620
...
22
COVER ASSY, GEAR CASE Includes Items 23-24 ECH-P100003631
...
23
BEARING, BALL 608 ECH-90080000608
...
24
BEARING, NEEDLE ECH-V551000000
...
25
BOLT, TORX 4x12 ECH-V804000050

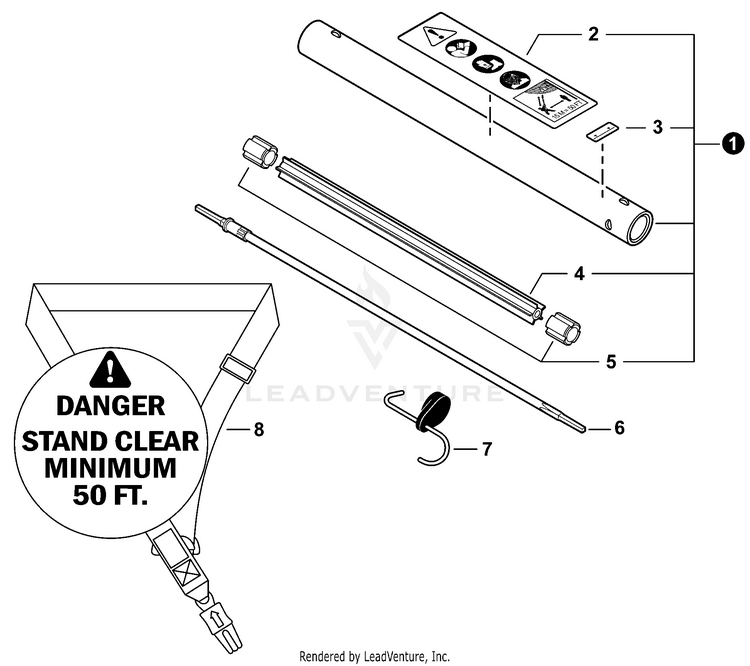

Main Pipe

...
...
1
MAIN PIPE, PAS SHC-S Includes ITEMS 2-5 ECH-C059000020
...
2
LABEL - CAUTION ISO ECH-X505011540
...
3
LABEL - ALIGNMENT ECH-89015204930
...
4
LINER - FLEXIBLE ECH-C507000380
...
5
STOPPER ECH-61024644730
...
6
DRIVESHAFT - FLEXIBLE, MTA ECH-C506000780
...
7
HANGER, ATTACHMENT ECH-P021047620
...
8
HARNESS, SHOULDER ECH-C062000680

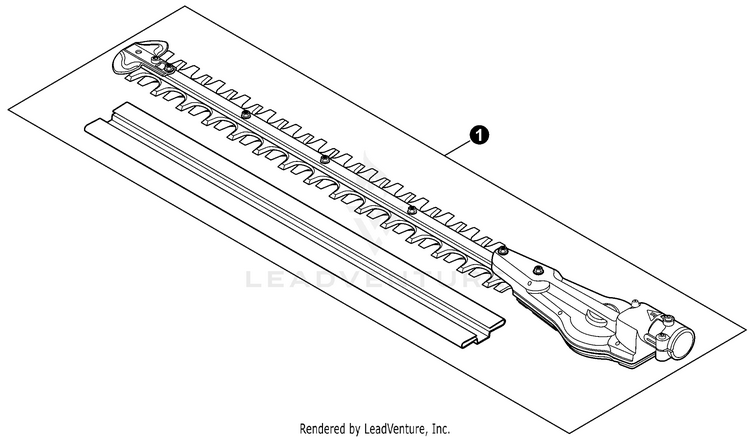

Trimmer Head Kit

...
...
1
CUTTING HEAD KIT ECH-9001032
...
...
...
...
...
