Echo 99944200615 Curved Shaft Trimmer Attachment S/N: S55500001001 - S55500999999

Model: 99944200615 Curved Shaft Trimmer Attachment

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

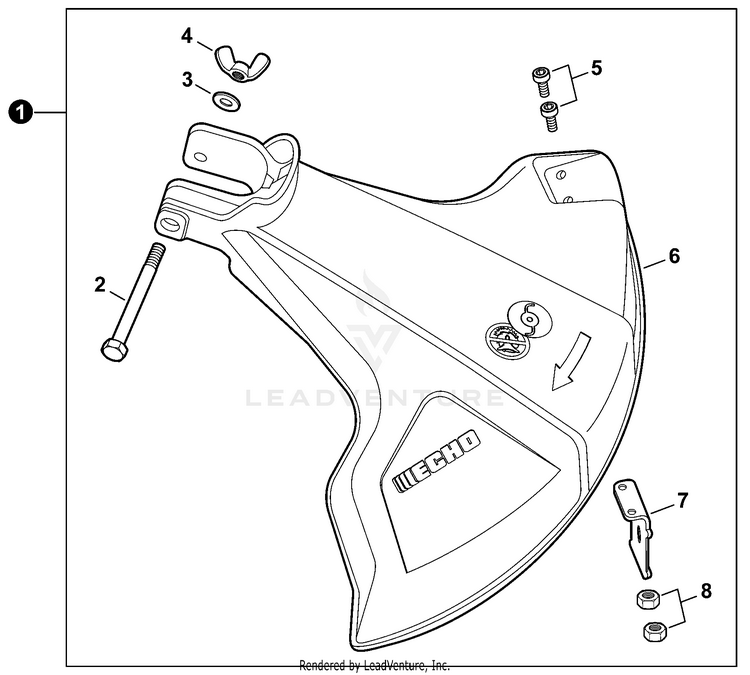

Debris shield

...
...
1
SHIELD ASSY, DEBRIS Includes ITEMS 2-8 ECH-P021053910
...
2
BOLT 1/4"-20x2" ECH-90001708064
...
3
WASHER, 1/4" ECH-90003500008
...
4
NUT, WING 1/4"-20 ECH-90003300008
...
5
BOLT, TORX 5x12 ECH-V835000010
...
6
SHIELD, DEBRIS ECH-C550000870
...
7
CUTTER, LINE ECH-C554000080
...
8
NUT M5 ECH-90050000005

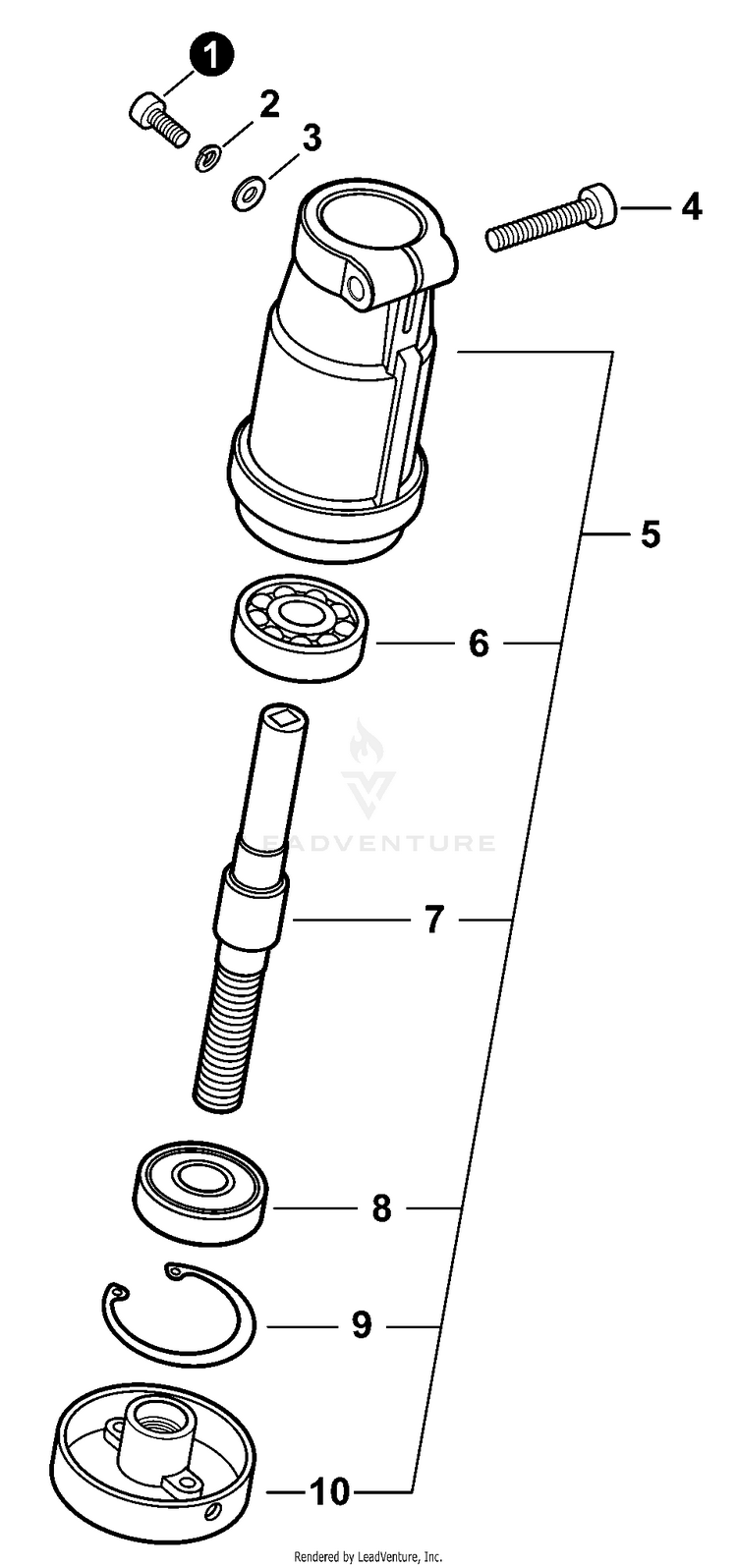

Gear Case

...
...
1
BOLT, TORX 4x10 ECH-V804000040
...
2
WASHER, SPRING 4 ECH-900605-00004
...
3
WASHER 4 MM ECH-90060000004
...
4
BOLT, TORX 5x25 ECH-V805000170
...
5
GEAR CASE ASSY Includes ITEMS 6-10 ECH-C056000001
...
6
BEARING, BALL 6200 ECH-90081006200
...
7
SHAFT, GEAR ECH-C534000950
...
8
BEARING, BALL 6200 ECH-90081106200
...
9
E-RING 30 ECH-90070200030
...
10
PLATE, ADAPTOR - UPPER ECH-C535001380

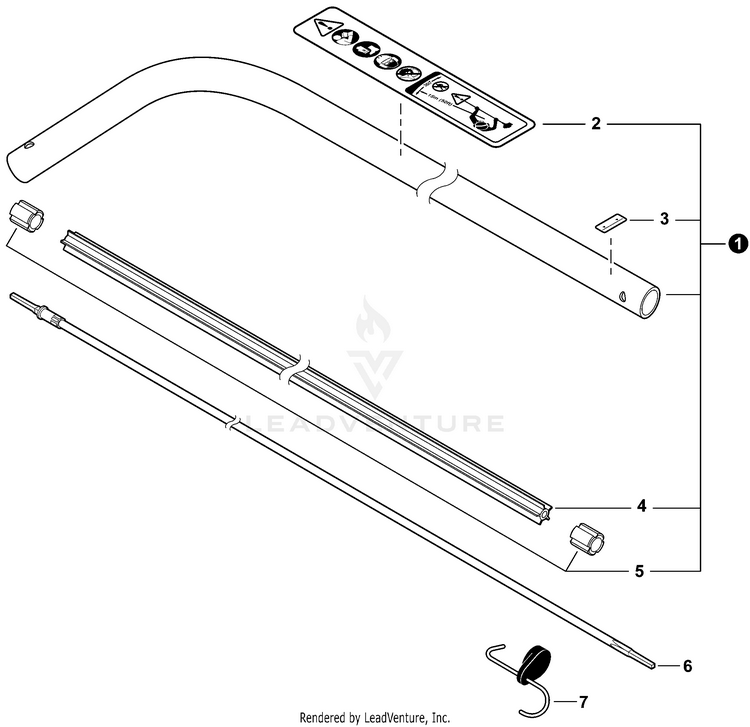

Main Pipe S/N: S55500001001 - S55500032202

...
...
1
MAIN PIPE, GT PAS ATTACHMENT Includes ITEMS 2-5 ECH-C050003111
...
2
LABEL - CAUTION ECH-X505005920
...
3
LABEL - ALIGNMENT ECH-89015204930
...
4
LINER - FLEXIBLE ECH-C507000320
...
5
STOPPER ECH-61024644730
...
6
DRIVESHAFT - FLEXIBLE ECH-C506000310
...
7
HANGER, ATTACHMENT ECH-P021047620

Main Pipe S/N: S55500032203 - S55500999999

...
...
1
MAIN PIPE, GT PAS ATTACHMENT Includes ITEMS 2-5 ECH-C050003111
...
2
LABEL - CAUTION ECH-X505005920
...
3
LABEL - ALIGNMENT ECH-89015204930
...
4
LINER - FLEXIBLE ECH-C507000320
...
5
STOPPER ECH-61024644730
...
6
DRIVESHAFT - FLEXIBLE ECH-C506000310
...
7
HANGER, ATTACHMENT ECH-P021047620

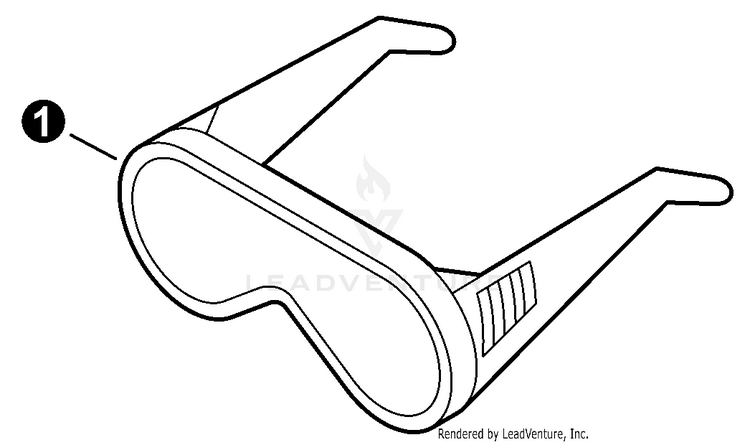

Tools

...
...
1
GLASSES, SAFETY ECH-X690000080

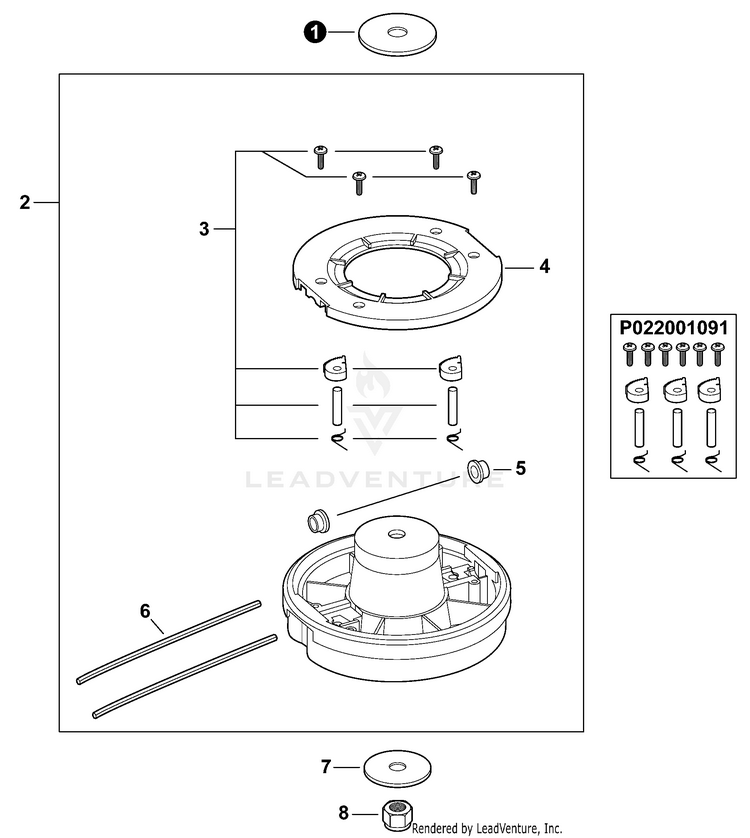

Trimmer Head - Rapid Loader

...
...
1
WASHER 10 ECH-V307000110
...
2
TRIMMER HEAD - RAPID-LOADER? Includes ITEMS 3-6 ECH-21560056
...
3
PAWL KIT ECH-P022001091
...
4
COVER, TOP ECH-P022001070
...
5
EYELET (PACKAGE OF 3) ECH-P022001080
...
6
LINE, TRIMMER - 0.080 DIA. (PKG. OF 20) ECH-102212131
...
7
WASHER 10 ECH-V307000080
...
8
NUT, LOCK ECH-V266000030
...
...
...
...
...
